Faulty Signal. Permanent Fault

Faulty signal. Permanent fault

Replacing the component





Hint: The control module has detected faults in the side impact collision sensor during diagnostics. The signal is transmitted to the control module where the fault is registered.

Note! Repairs must not be made to the collision sensor.

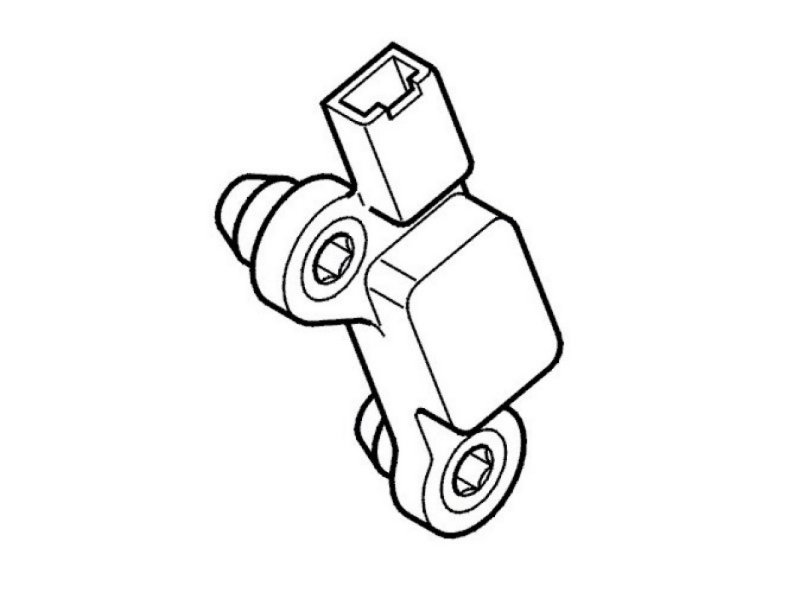

Try replacing the collision sensor according to Side impact sensors Service and Repair.

Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.




- Ignition off
- Disconnect the battery negative lead
- Reinstall the connectors, components etc.
- Ignition on
- Connect the battery negative lead.

Warning! There must not be anyone inside the passenger compartment when the battery is connected.

- Read off diagnostic trouble codes (DTCs).
The fault is no longer present if the status of the diagnostic trouble code (DTC) has changed to intermittent.





Does the status change?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - FAULT FOUND

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Replacing the component

-------------------------------------------------
