Signal Too Low. Intermittent Fault

Signal too low. Intermittent fault

Checking wiring












- Make a note of the anti-theft radio code.
- Ignition off.
- Disconnect the battery negative lead.
- Disconnect the connector from the driver's airbag.
- Disconnect the control module.

Warning! Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected, non-deployed airbag module. This could deploy the airbag!

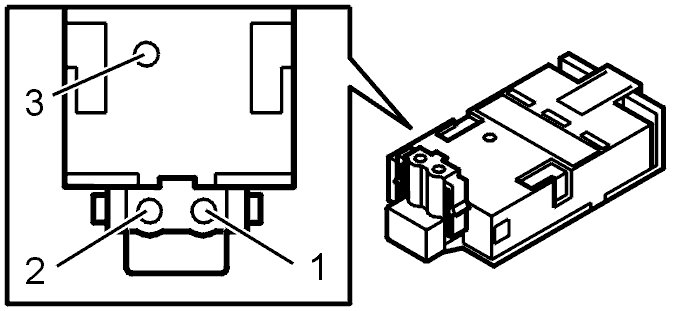

Connect an ohmmeter between driver's airbag #1 and ground. Check for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Disconnect the connector from the contact reel.
Connect an ohmmeter between contact reel #1 and ground. Check for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Remedy as necessary.













Other information:
- To access the control module, see SRS control module Service and Repair.
- To access the contact reel / driver's airbag, see Airbag steering wheel module, steering wheel and contact reel Airbag Steering Wheel Module, Steering Wheel and Contact Reel Replacement.

Select Continue when the fault has been remedied.

Continue - Fault-tracing information
DONE

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

FAULT-TRACING FAILED - DONE

Attempt New Test - Checking wiring

-------------------------------------------------
