Signal Too Low. Permanent Fault
Signal too low. Permanent fault
Checking component
- Ignition off.
- Disconnect the solenoids' connectors.
- Disconnect control module.

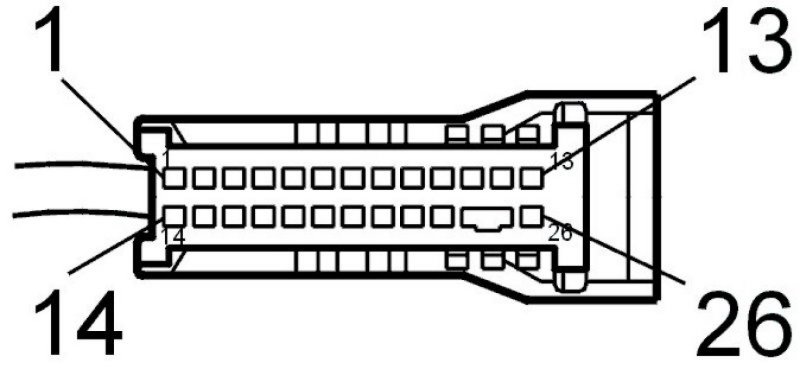

For S1: Connect an ohmmeter between control module connector 4 and ground and 5 and ground. Measure for a short-circuit to ground according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
For S2: Connect an ohmmeter between control module connector 17 and ground and 21 and ground. Measure for a short-circuit to ground according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
The ohmmeter should read infinite resistance.
Other information:
- To disconnect/replace control module, see Replacing the Roll-over Protection System (ROPS) module Service and Repair.
- To disconnect the solenoid connector, see Replacing the roll-over bar cassette Removal and Replacement.
Does the value deviate?
Yes - Replacing component
No - Checking for a short-circuit to ground
-------------------------------------------------
Replacing component
Fault-tracing indicates that there is a short-circuit in the cable harness. Where repairs to affected cables is not permitted, the cable harness must be replaced.
Select Continue when the fault has been remedied.
Continue - Verification
-------------------------------------------------
Checking for a short-circuit to ground
- Ignition off.
- Connect the solenoids' connectors.
For S1: Connect an ohmmeter between control module 4 and 5 on the solenoid side.
For S2: Connect an ohmmeter between control module 17 and 21 on the solenoid side.
The ohmmeter should read approximately 4 W.
Try a new roll-over bar cassette if the value is not correct.
Remedy as necessary.
Other information:
- To disconnect/replace control module, see Replacing the Roll-over Protection System (ROPS) module Service and Repair.
- To replace the roll-over bar cassette, see Replacing the roll-over bar cassette Removal and Replacement.
Select Continue when the fault has been remedied.
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied as follows.
- Ignition off.
- Wait 10 seconds so that the system is unpowered.
- Reinstall connectors, components etc.
- Ignition on.
- Read off diagnostic trouble codes (DTCs).
If the DTC status changed to intermittent it means that the fault is no longer present.
Does the status change?
Yes - Verification, continued
No - VERIFICATION FAILED
------------------------
Verification, continued
- Ignition off.
- Press down the roll-over bars if they are deployed.
- Ignition on.
Activate the solenoids.
Warning! Nobody is permitted to be in the vicinity of the roll-over bars when they are being activated.
Did the solenoids activate ?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFIED - FAULT FOUND
VERIFICATION FAILED - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking component
-------------------------------------------------
