Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition

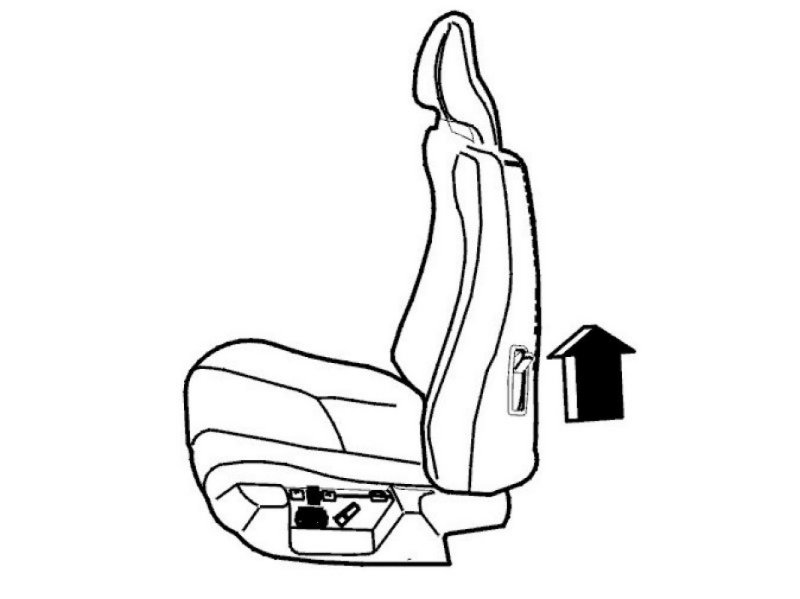

ECU should store that position as original position when the backrest switch is activated (by raising the lever). If the original position is not programmed the diagnostic trouble code (DTC) PSL/PSR-332 is stored.

Possible source
- Defective backrest switch.
- Open-circuit between control module and backrest switch.
- Defective control module.

Fault symptom[s]
- The seat does not move forward to the entry position.
- The seat does not move back to the original position.
