Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition

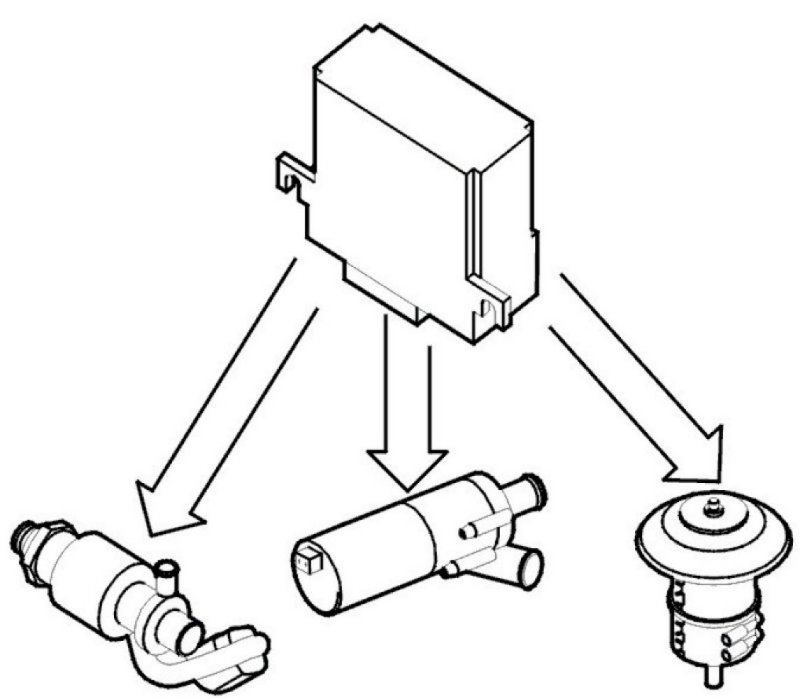

A diagnostic trouble code (DTC) is stored if there is a short-circuit to ground or an open-circuit in the power supply from the control module to the fuel pump, water pump and combustion fan.

Substitute value
Heater not activated.

Possible source
- Contact resistance in control module connector.
- Short-circuit to ground in the power supply circuit.
- Open-circuit in the power supply cable.

Fault symptom[s]
- Poor heating in passenger compartment.
