Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition




A diagnostic trouble code (DTC) is stored if the flame goes out due to a malfunction while the system is operating.

Substitute value
Heater not activated.

Possible source
- No fuel supply.
- Contact resistance in control module connector.
- Open-circuit in the signal cable
- Short-circuit to supply voltage in signal cable

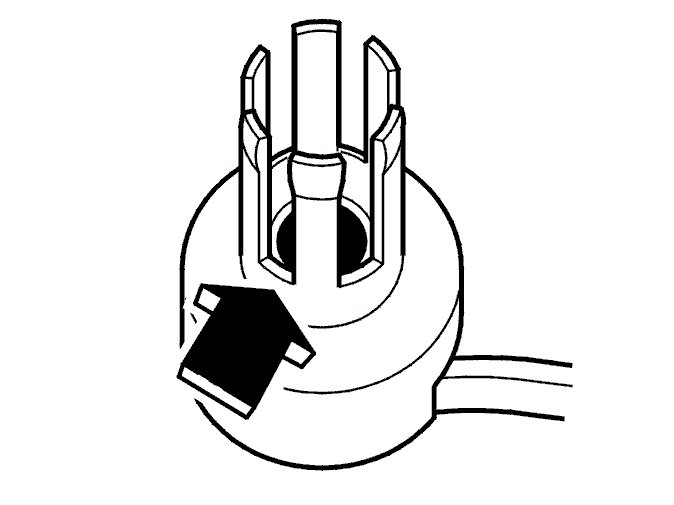

- Flame sensor clogged with soot.
- Defective flame sensor.
- Open-circuit in ground lead.

Fault symptom[s]
- Poor heating in passenger compartment.
