Diagnostic Trouble Code (DTC) Information

Diagnostic Trouble Code (DTC) Information







Condition
If the control module registers that the signal from the resistive wire is more than 5 V for 10 seconds after, the alarm system is powered up or the alarm is activated/deactivated, then diagnostic trouble code (DTC) GLA-441 is stored.

Condition
None.

Possible source
- Short-circuit to supply voltage in the signal cable.
- Open-circuit in signal cable.

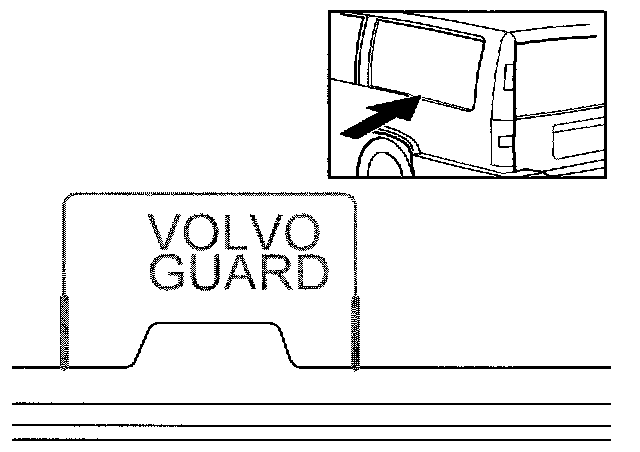

- Open-circuit in the resistive wires in the rear side windows.

Condition
- When the ignition is switched on the indicator LED flashes at 4Hz for 15 seconds.
- No resistive wire glass sensor alarm function.
