Intermittent Fault

Intermittent Fault

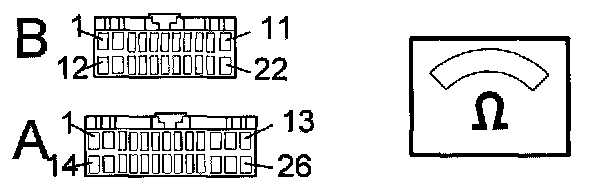

Check the cable between control module #A22 and glass breakage sensor connector #4 for an intermittent short-circuit to ground according to Checking wiring and terminals - Intermittent faults, an intermittent short-circuit to supply voltage according to Checking wiring and terminals - Intermittent faults and an intermittent open-circuit according to Checking wiring and terminals - Intermittent faults. Check the cable between fuse 13 and glass breakage sensor connector #1 for an intermittent open-circuit according to Checking wiring and terminals - Intermittent faults. Check the cable between glass breakage sensor #5 and ground for an intermittent open-circuit according to Checking wiring and terminals - Intermittent faults.

Checking Wiring and Terminals - Intermittent Faults

Other information:
- For further information about signals and other values, see Control Module Pinout Values.
- To connect the breakout box, Reading and Clearing Diagnostic Trouble Codes
