Signal Missing. Intermittent Fault

Signal missing. Intermittent fault

Checking component and wiring

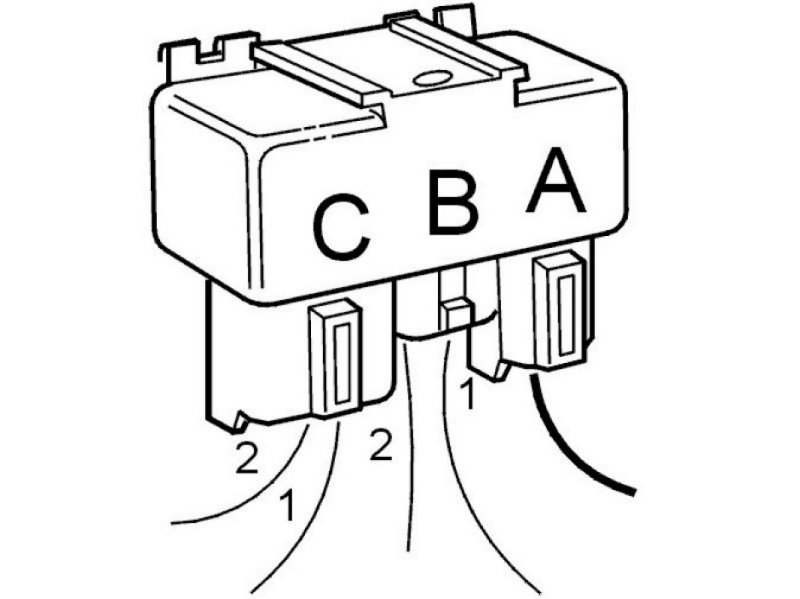

Check cable between engine control module (ECM) #B41 (#B51) and combined instrument panel #B16 for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Remedy as necessary

Other information
- To connect the breakout box/access the engine control module (ECM), see Connecting the breakout box, B5234T9, B5244T7 Connecting The Breakout Box.
- For information about signals, see Signal specification Signal Specifications.










Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Checking component and wiring

FAULT FOUND - DONE

-------------------------------------------------
