Signal Too High. Intermittent Fault

Signal too high. Intermittent fault

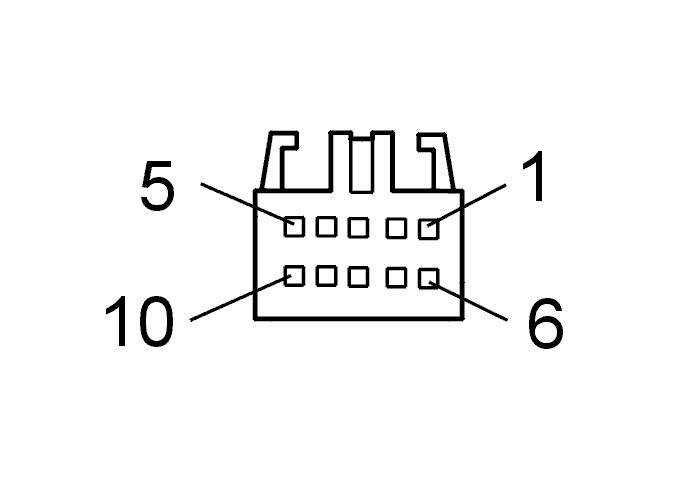

Checking cables and connectors
Check signal cable between control module #B29 (#B39) and outside temperature sensor #1 for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults

Other information
- Connecting the breakout box/accessing the control module, see Connecting the breakout box, B5234T9, B5244T7 Connecting The Breakout Box.
- To access/replace the outside temperature sensor, see Replacing sensor Replacing Sensor.
- For information about signals, see Signal specification Signal Specifications.














Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Checking cables and connectors

FAULT FOUND - DONE

-------------------------------------------------
