Faulty Signal. Intermittent Fault

Faulty signal. Intermittent fault

Checking the wiring








- Connect the control module.
- Check the function of the micro-switch
- Check that the switch appears normal
- Ignition on
- Operate the micro-switch manually
- Read off the status of the micro-switch.
The status should change from activation (micro-switch on) to non activation (micro-switch off).

Other information:
- For the location of the components, see Convertible system Component Locations
- For other values, see Opening and closing the convertible top Opening and Closing the Convertible Top
- To access or replace the micro-switch for the front latch, rear position, see Replacing and adjusting micro-switches Replacing and Adjusting Micro-Switches
- There is a short-circuit to ground if the status is low when the switch inactive
- If the status is high with the micro switch activated there is an open-circuit or a short-circuit to supply voltage.

Hint: The micro-switch can be activated by hand or using a pointed tool. Be careful.





Does the status change?

Yes - Fault-tracing information

No - Checking the component

-------------------------------------------------

Checking the component




- Ignition off.
Check the micro-switch connector. Check for an intermittent short-circuit to ground. See Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.

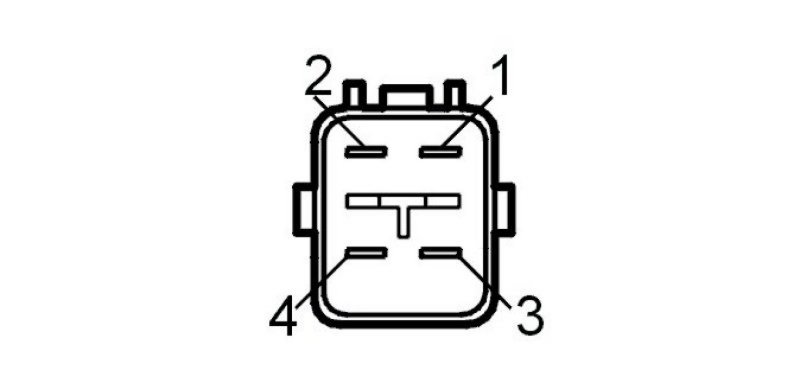

Connect an ohmmeter between micro-switch connector terminal #1 and ground and terminal #2 and ground. The micro-switch must be in the unaffected position.
Check for an intermittent short-circuit to ground. See Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Try a new micro-switch if a short-circuit is found.
If no fault is found, there is probably a fault in the cable between the control module and the micro-switch connector.
Remedy as necessary.

Other information:
- To access the micro-switch for the front locking arm, rear position, see Replacing and adjusting micro-switches Replacing and Adjusting Micro-Switches
- The micro-switch can be activated by hand or using a pointed tool. Be careful.









Select Continue when the fault has been remedied.

Continue - Checking the connectors

-------------------------------------------------

Checking the connectors
Check control module connector C. Check for an intermittent short-circuit to ground. See Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the convertible control unit breakout box Connecting the Breakout Box
- To access and replace the control module see Replacing the control module Service and Repair.









Select Continue when the fault has been remedied.

Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

FAULT-TRACING FAILED - DONE

Attempt New Test - Checking the wiring

-------------------------------------------------
