Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition

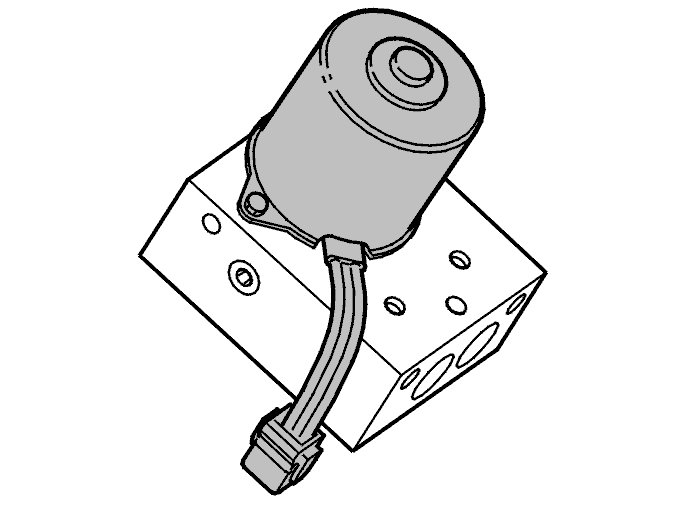

Diagnostic trouble code (DTC) ABS-0070 is stored if the control module registers that the pump motor operates continuously, does not start or if the signal is missing.

Substitute value
- ABS system is blocked.
- TRACS system is blocked (cars equipped with TRACS only).
- Anti-spin function is blocked.

Possible source
- Contact resistance in terminals.
- Fuse 4 defective.
- Loose pump motor connector.
- Open-circuit in power supply to pump motor.
- Open-circuit in pump motor ground lead.
- Open-circuit in pump motor power supply (30-supply) to control module #25.
- Defective pump motor.
- Internal fault in control module.

Fault symptom[s]
- ABS warning lamp lit.
- Anti-spin warning lamp lit.
- No ABS function.
- No TRACS system (cars equipped with TRACS only).
- Anti-spin does not function.
