Signal Missing. Intermittent Fault

Signal missing. Intermittent fault

Checking cables and terminals
Check control module and relevant wheel sensor connectors for intermittent contact resistance and oxidation according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.

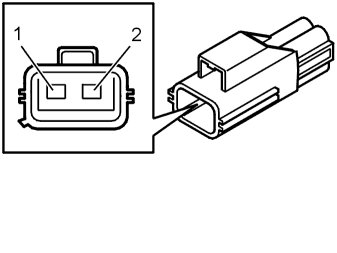

Check wiring between relevant wheel sensor connector:

Diagnostic trouble code (DTC) ABS-0010 Left front wheel sensor
#1 and control module #2

Diagnostic trouble code (DTC) ABS-0020 Right front wheel sensor
#1 and control module #20
for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults , for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults and for an intermittent short-circuit to supply voltage according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Check wiring between relevant wheel sensor connector:

Diagnostic trouble code (DTC) ABS-0010 Left front wheel sensor
#2 and control module #1

Diagnostic trouble code (DTC) ABS-0020 Right front wheel sensor
#2 and control module #19
for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults , for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults and for an intermittent short-circuit to supply voltage according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the ABS breakout box Connecting the ABS Breakout Box.
- For other values, see Signal specification, ABS control module Signal Specification, ABS Control Module.









Continue - Fault-tracing information
DONE

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Checking cables and terminals

-------------------------------------------------
