Roll Over Protection System (ROPS)
Roll Over Protection System (ROPS)
DTC table ROPS
A fault can occur in two ways, intermittently or permanently. Intermittent faults are temporary and can recur. Permanent faults are always present.

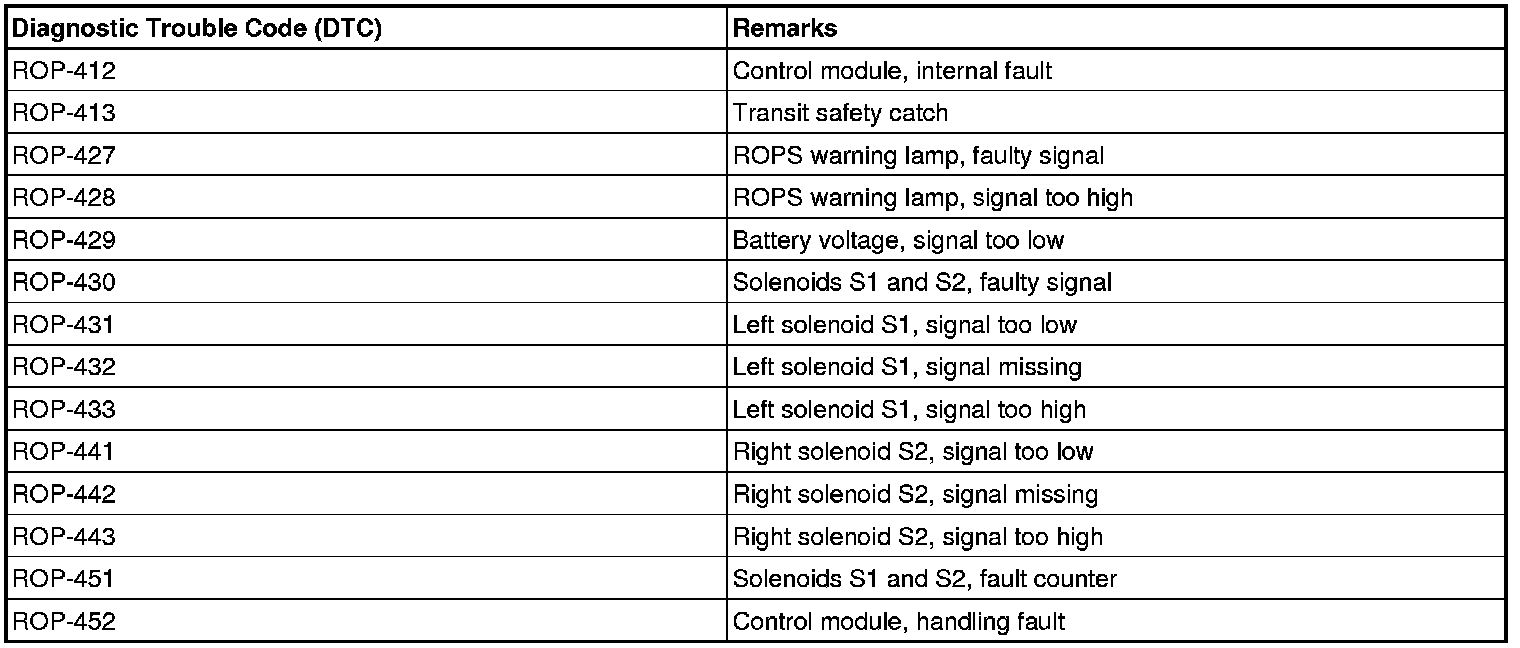

DTC Table (ROP Codes):
