Home >> Volvo >> 2000 >> C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Manufacturer Code Charts >> Driver Information Module (DIM)

Driver Information Module (DIM)

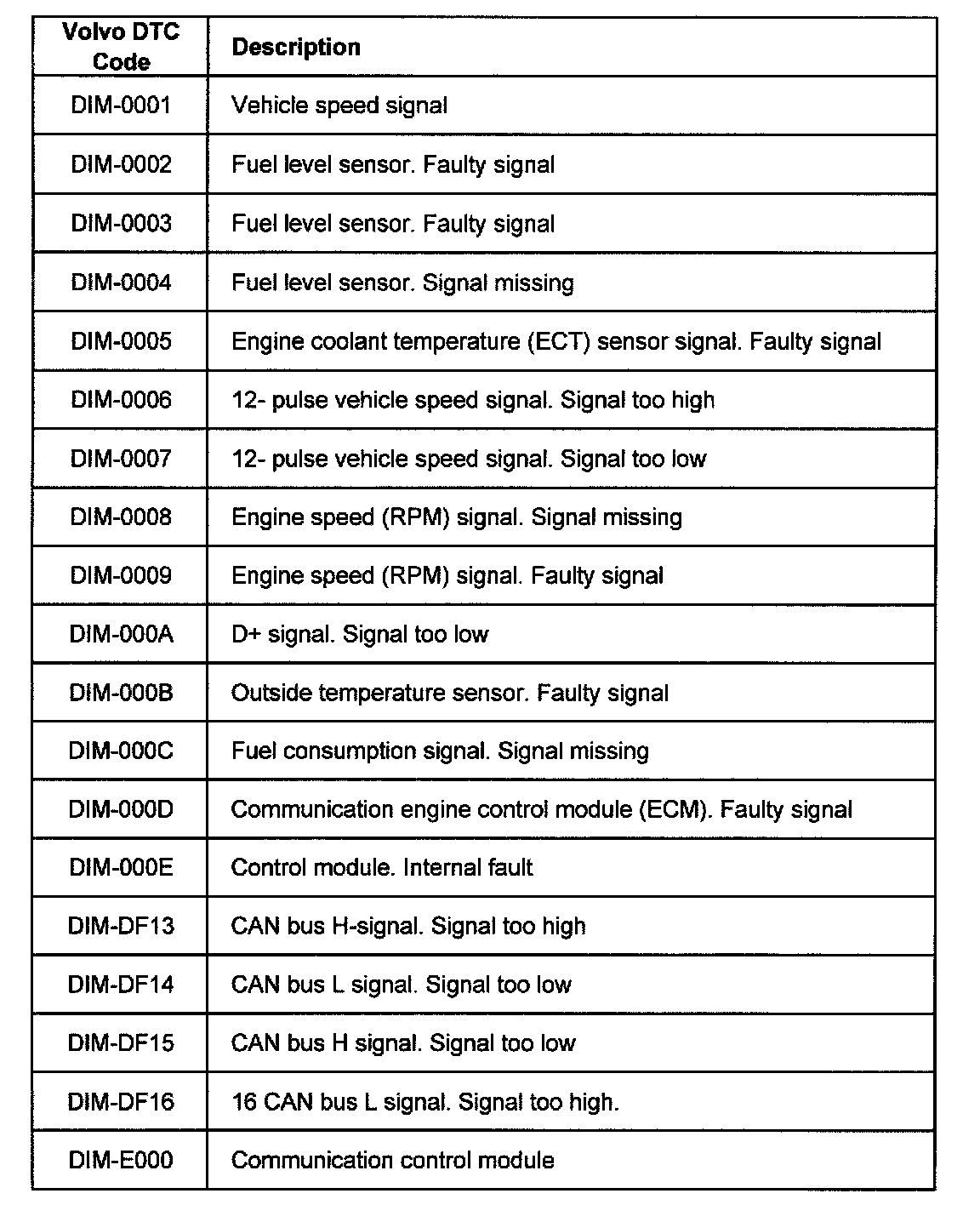

Instrument Panel DTC's

DIM-0001 / DIM-E000:
