Fluid - Transfer Case: Service and Repair

Filling Bevel Gear Fluid

NOTE:
If bevel gear has been removed, position the bevel gear so that it is standing on the oil pan (as it is loctated in the car)

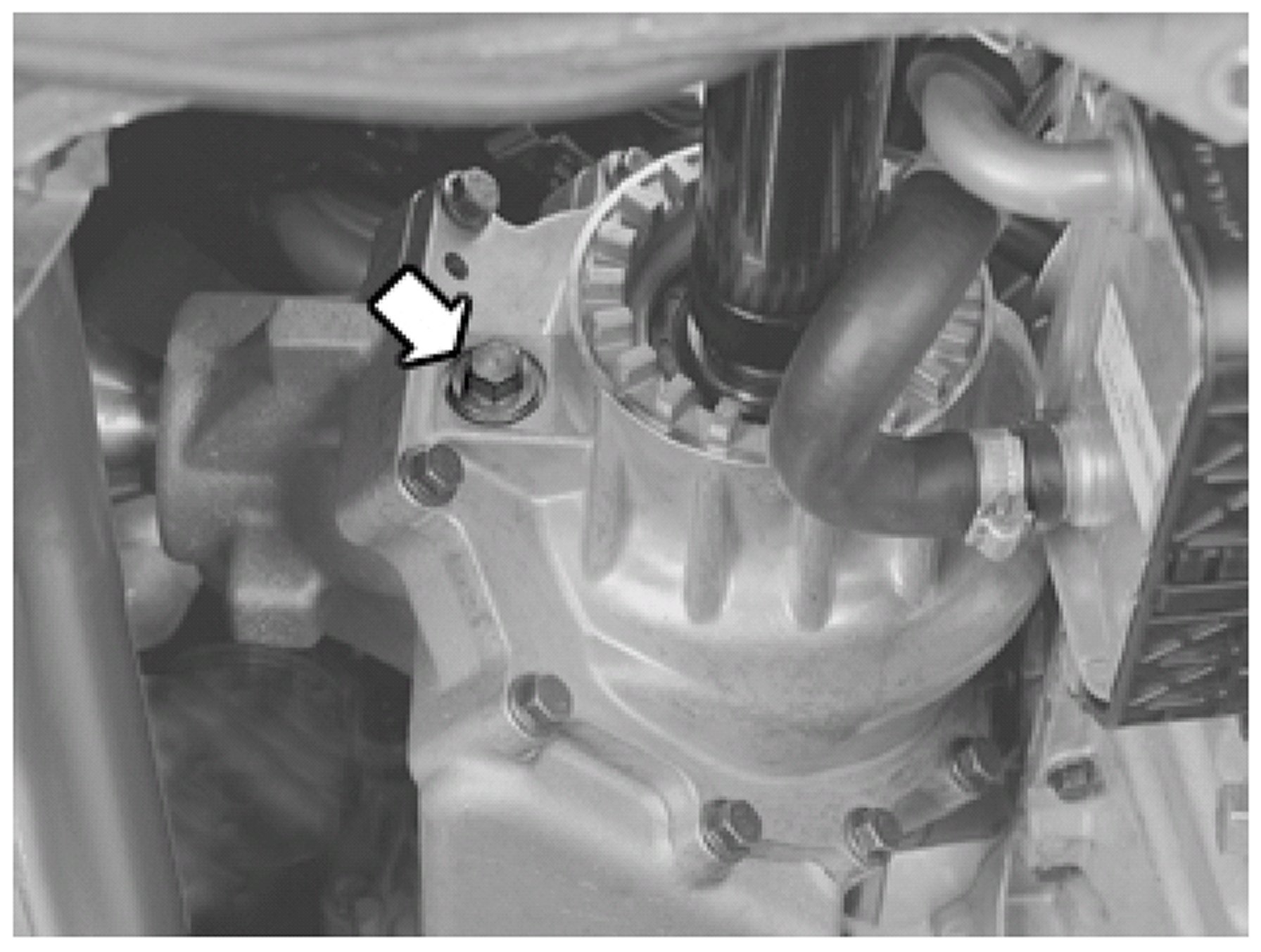

Remove level plug.

Fill with oil (P/N 1161648) until the oil runs out of the level plug hole.

CAUTION!
Then drain 0.2 L of oil

Install the level plug.

Tighten level plug: 35 Nm
