Campaign - Transmission Control Module Software Upgrade

Section
3

Group
30

No.
0002

Year
01

Month
07

V70 XC/C70 2000

Service Upgrade No. 107,
Transmission software upgrade

Background:

To ensure proper overall transmission shift function performance and/or shift quality, software upgrade FID 600 or 601 should be downloaded as the procedure describes below.

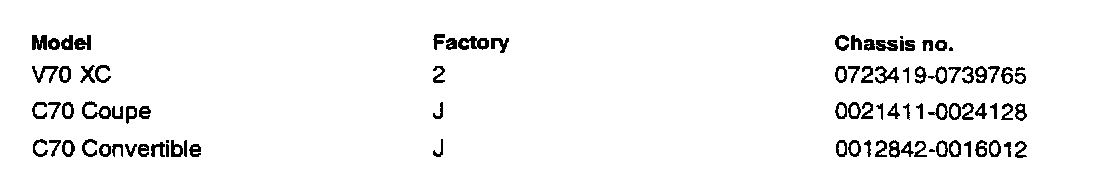

Cars involved:

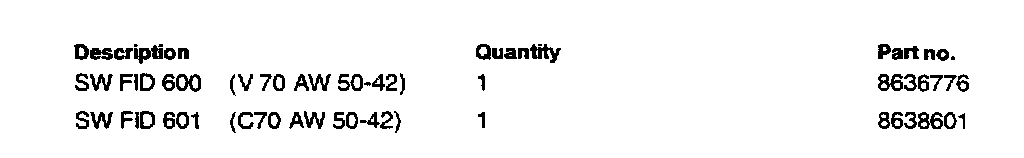

Materials:

Service:

Vehicles within the chassis number range listed above should have SW FID 600, P/N 8636776 or SW FID 601, P/N 8638601 downloaded at the next scheduled service.





To check if SW FID 600 has been downloaded into the car, ONE of the following unique software pan numbers should read out from the TCM via VAD IS shown.





To check if SW FID 601 has been downloaded into the car, ONE of the following unique software part numbers should read out from the TCM via VAD IS shown.

After the SW download the adaptive values for the TCM should be reset as per the instructions in VAD IS.
