Draining Fuel Injection System

Draining fuel injection system

Special tools: 981 2270, 981 2273, 981 2282, 999 5480, 999 5484

Removing covers

Remove:







- throttle pulley cover
- cap from valve on fuel rail.

Connecting

Fuel Rail Service Port:

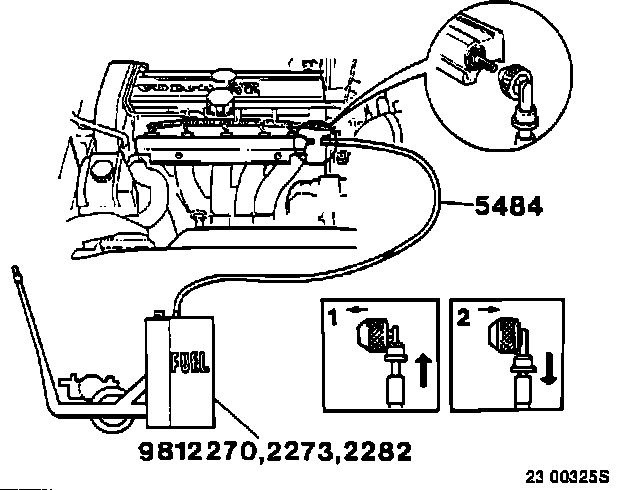

- Connect adapter 999 5484 to fuel draining unit 981 2270 981 2273 and 981 2282.
- Connect adapter to fuel rail valve in locked position (Figure 1, valve closed).
- Start fuel drainage unit.
- Unlock adapter (illustration 2 valve open).
- Raise the car.
