Electrical Diagrams

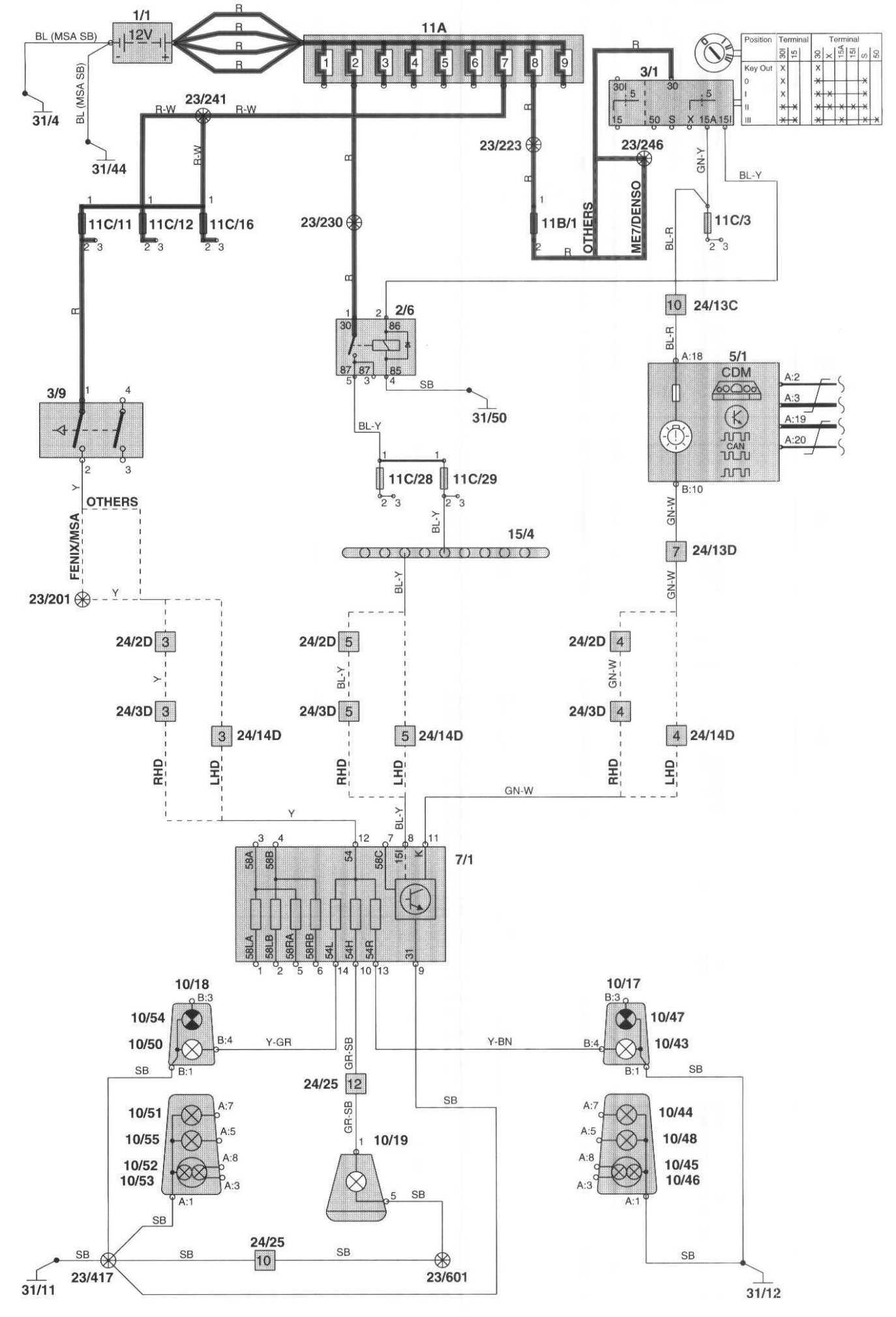

Brake (Stop) Lamps V70 - Wiring Diagram:

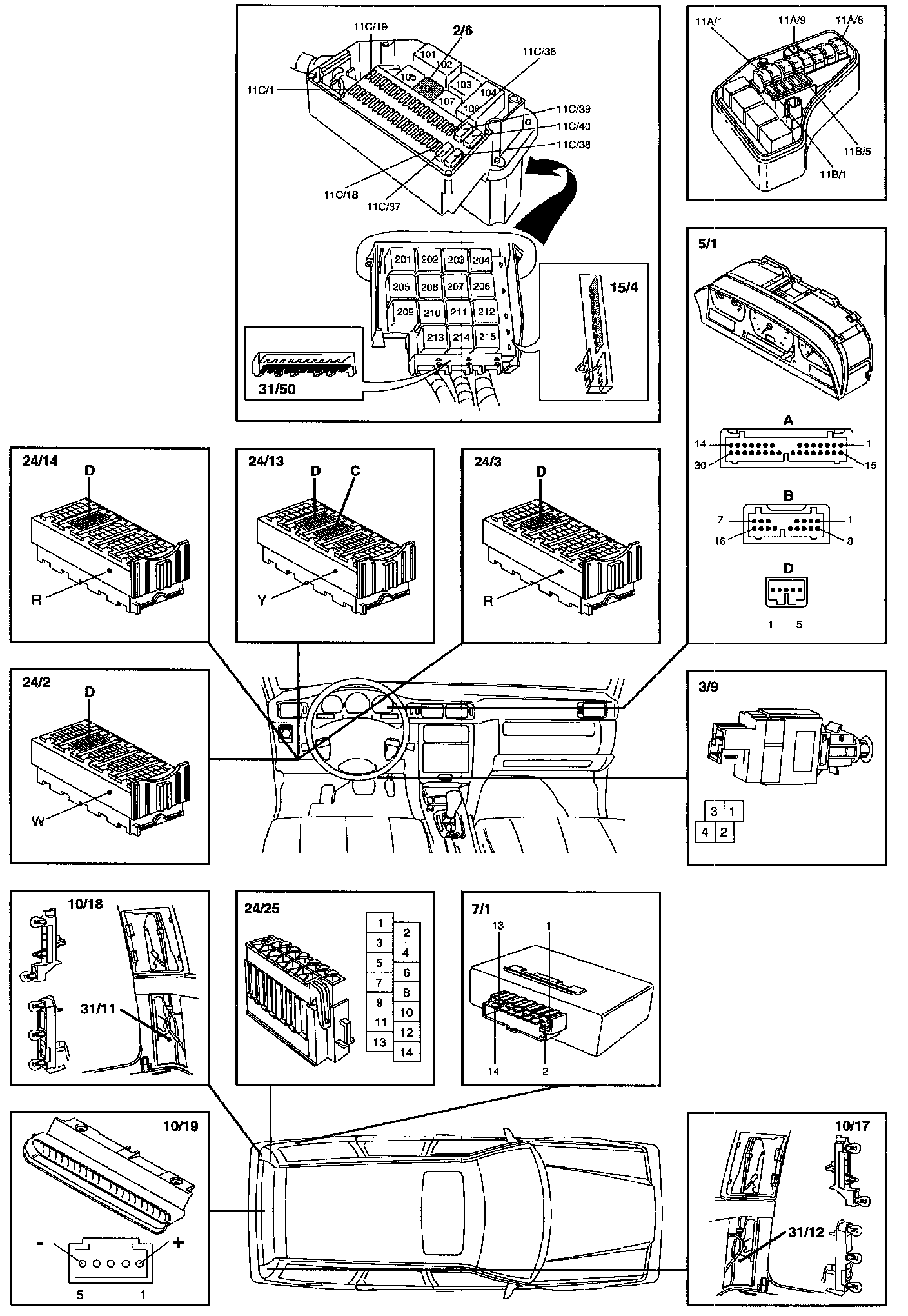

Brake (Stop) Lamps V70 - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
