D. V70 AWD (Chassis No. 386581-403738)

D1

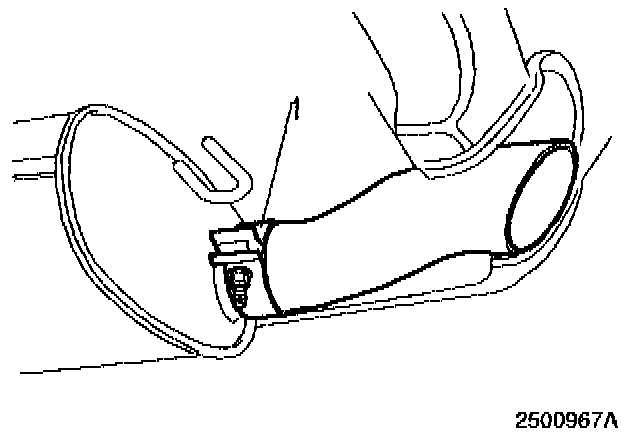

Loosen the clamp (1) which holds the tail pipe.

Remove the tail pipe.

D2

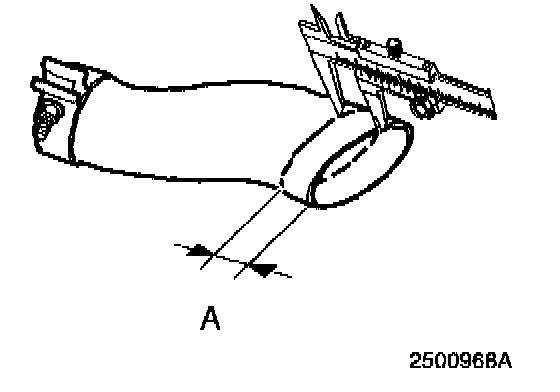

Markup 25 mm (1") (A) around the cross-cut end.

Hint: Use a sliding calipers as a parallel marking gauge.

D3

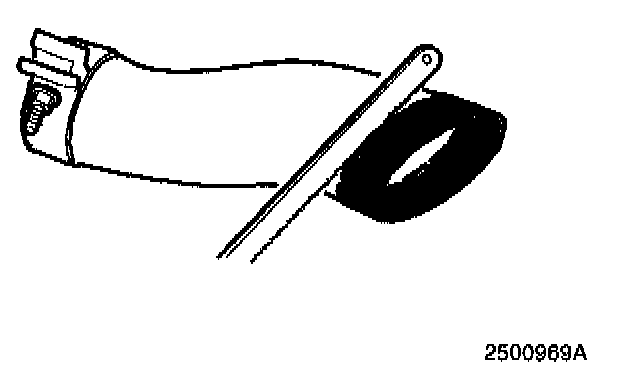

Cut accurately and carefully along the marked gauge.

D4

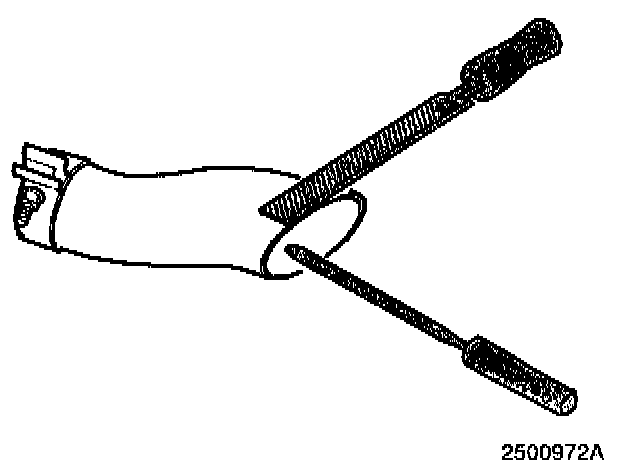

Burr the outer section of the tail pipe and the edge. Burr the edge inside the tail pipe.

D5




Refit the tail pipe.

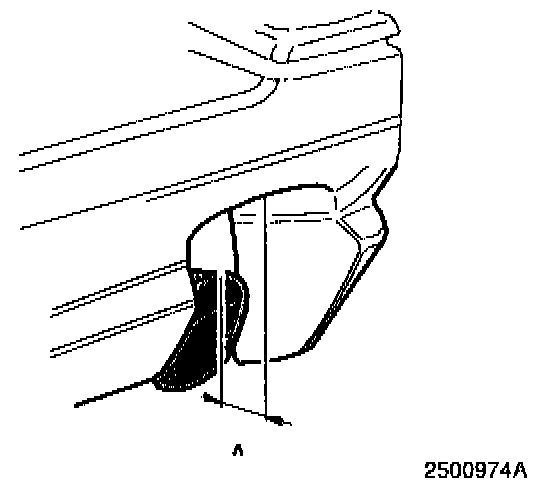

Make sure that the distance (A) reads 20 mm (3/4") according to the illustration.

D6

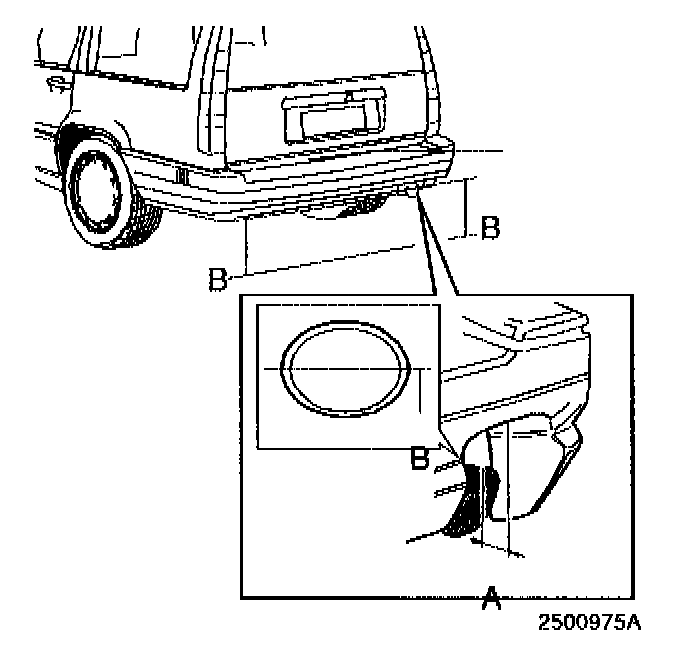

Make sure that the oval opening is turned so that the axis (B) is horizontal.

Tighten the tail pipe.

No further actions needed.
