Radio With 4X50 Watt Extra Amplifier




Radio With Amplifier V70 - Wiring Diagram:

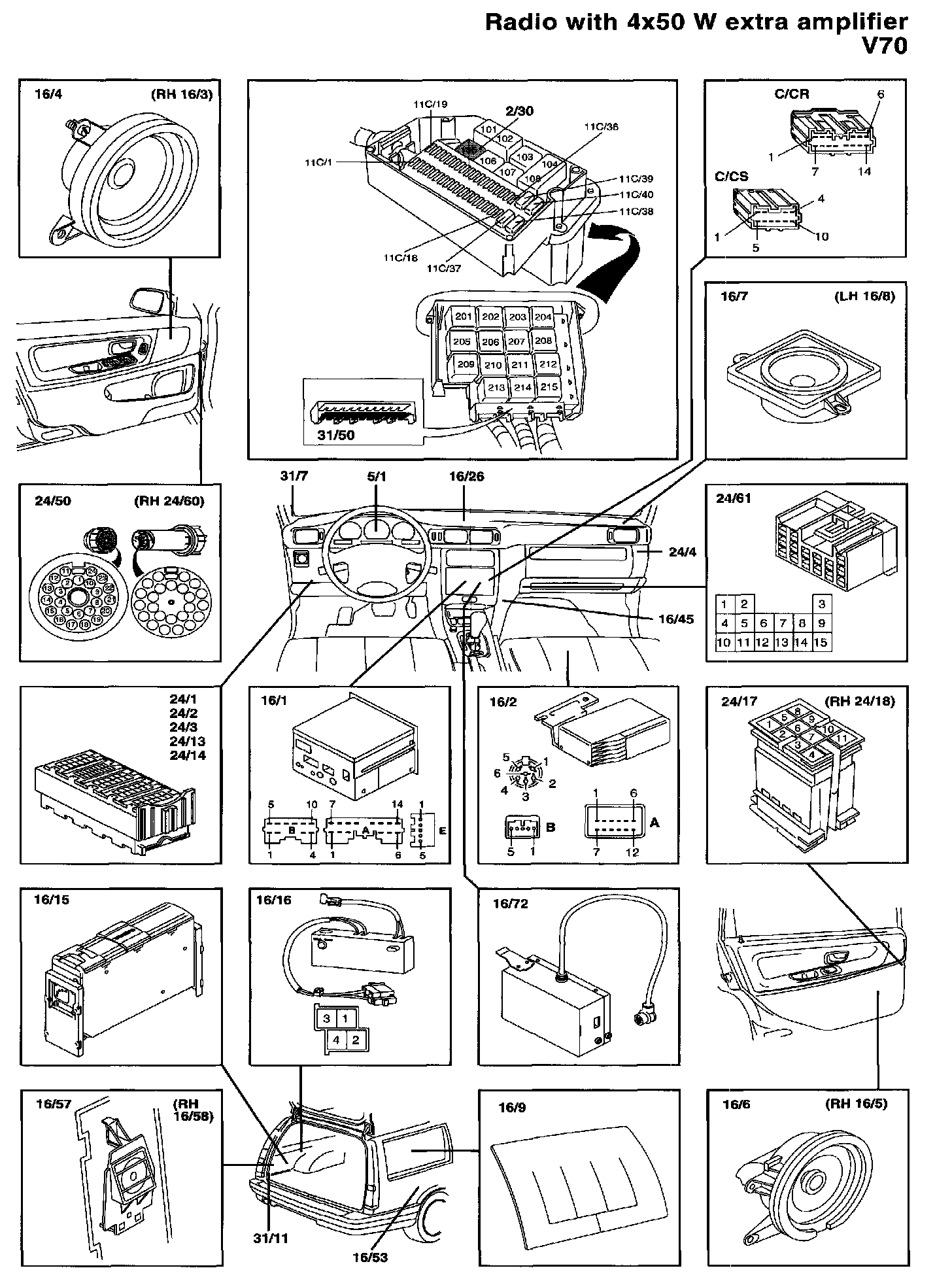

Radio With Amplifier V70 - Component Location:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
