Interior - Headliner Clip Replacement
S60/V70 (01-)/V70 XC (01-)/S801999-
Section
8
Group
85
No.
0032
Year
04
Month
01
Vehicles involved: Without sun roof
Clip headlining, replacing
Background
This Service Bulletin describes the replacement of the central retaining clip in the headlining.
Material
Description Quantity Part Number
Holder 1 9193962
Foam rubber 2 679904
Other upholstery
Clip headlining, replacing
Clip on vehicles without mass movement sensor (MMS), replacing
Preparatory work 1
Carefully release the headlining so that it rests on the vehicles headrests, making the central clip accessible.
To release the headlining, see VADIS, group 85, Headlining, replacing appropriate components for each car model.
Removing the clip 2

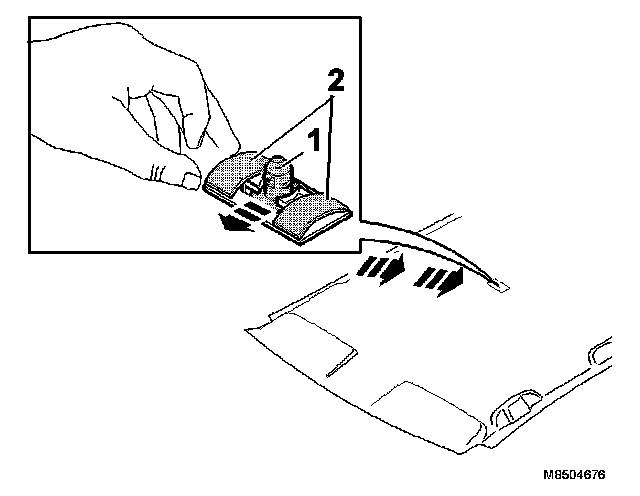

Remove the clip (1) from the holder.
Install:
- a new clip
- 2 pieces of foam rubber (2) on either side of the clip mounting.
Press up on the headlining so that the clip engages. Install the headlining.
Clip on vehicles with mass movement sensor (MMS), replacing
Preparatory work 3

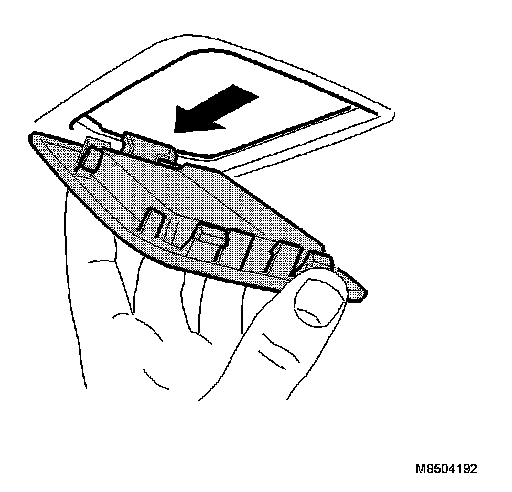

Remove the cover for the mass movement sensor by pressing the cover to the right (passenger side) and bending it downwards at the left corner.
Removing the clip 4

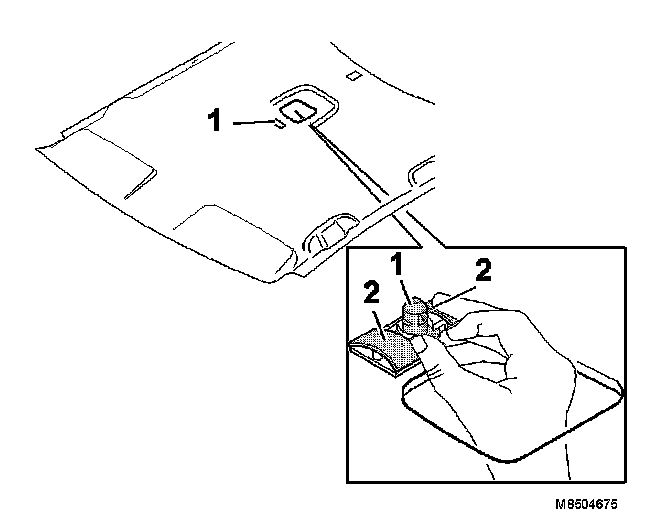

Remove the 1 clip (1) from the holder.
Install:
- a new clip
- 2 pieces of foam rubber (2) on either side of the clip mounting.
Press up on the headlining so that the clip engages. Install the cover on the right-hand side so that the holder secures in the headlining.
Press the cover to the right (passenger side) and then up so that the holders on the left-hand side secure in the headlining.
WARRANTY STATEMENT:
Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
