Cargo Compartment

GG1 Removing Floor Hatch:





- Remove rear, outer floor hatch.
- Undo the bottom of the D-post panel.
- Pull out outer section of sill trim panel.
- Fold down left rear seat left backrest.

GG2 Removing Side Cushion:

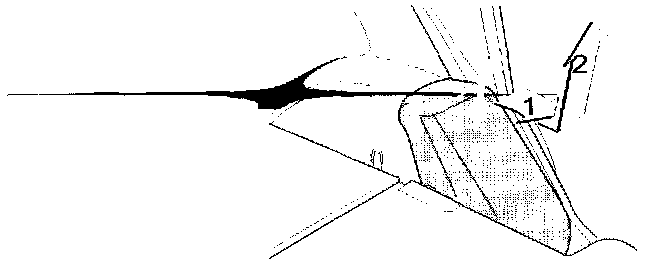

Remove the left-hand side cushion. Pull forwards at the top to release the side cushion from the clip at the top (1), then lift up (2).

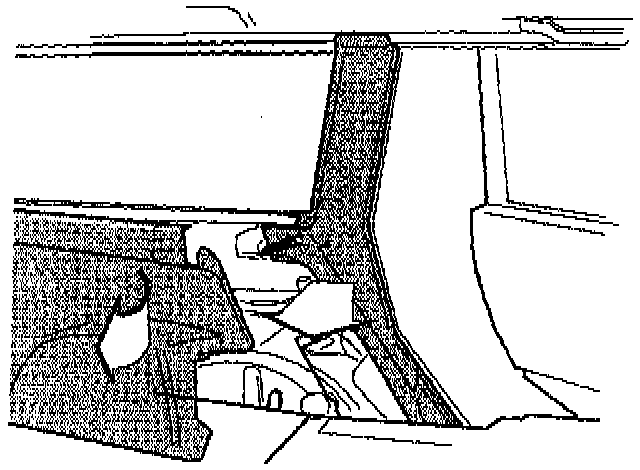

GG3 Removing Panel:





Remove:
- panel between C-post panel and side panel.

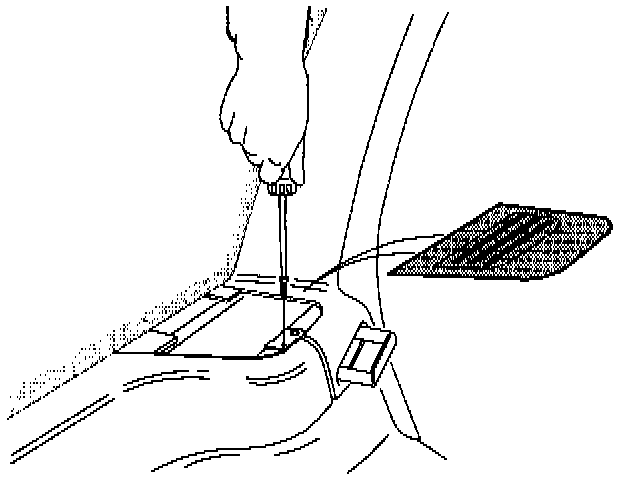

- rear screw to metal plate in the upper section between the C-post panel and the side panel.

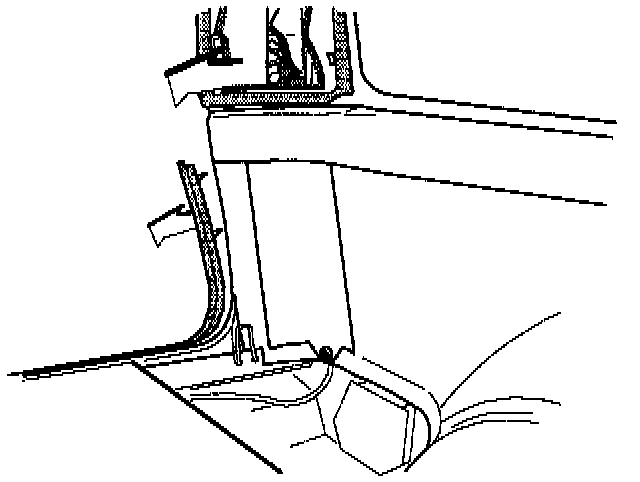

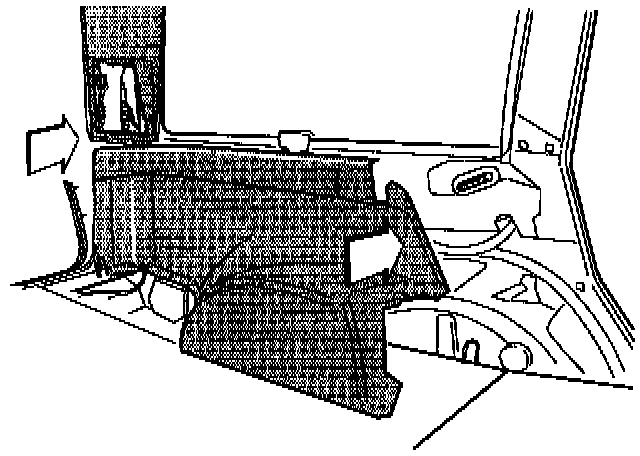

GG4 Removing C-Post Panel:





Remove:
- C-post panel, pull into the car.
- side panel.

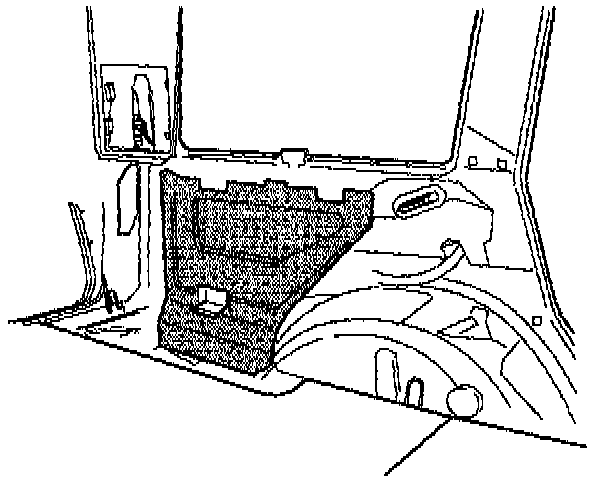

GG5 Removing Soundproofing Panel:





Remove the soundproofing panel.

GG9 Installing Soundproofing Panel:





Install soundproofing panel.

GG10 Installing Panels:




Install:

- side panel.
- lower section of D-post panel.
- outer section of sill trim panel.
- floor hatch.
- C-post panel

GG11 Installing Panel:





Install:
- rear screw to metal plate in the upper section between the C-post panel and the side panel.
- panel between C-post panel and side panel.

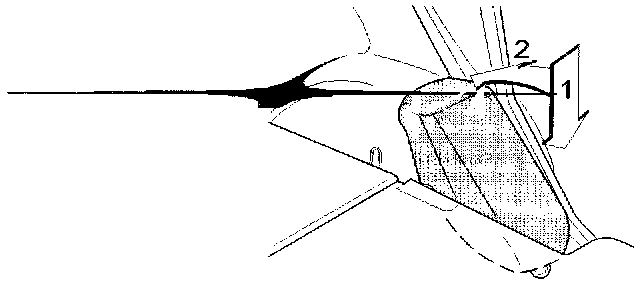

GG12 Installing Side Cushion:





- Install left-hand side cushion.
- Fold up left rear seat left backrest.
