Home >> Volvo >> 1999 >> V70 AWD L5-2.4L Turbo VIN 56 B5254T >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Horn >> Service and Repair >> Replacing Siren

Replacing Siren

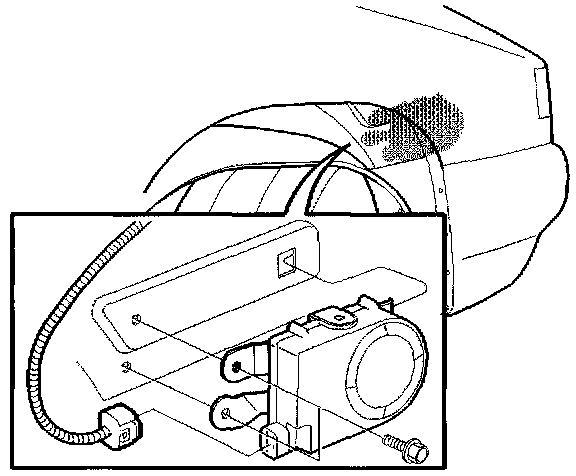

ZZP1. Removing Siren

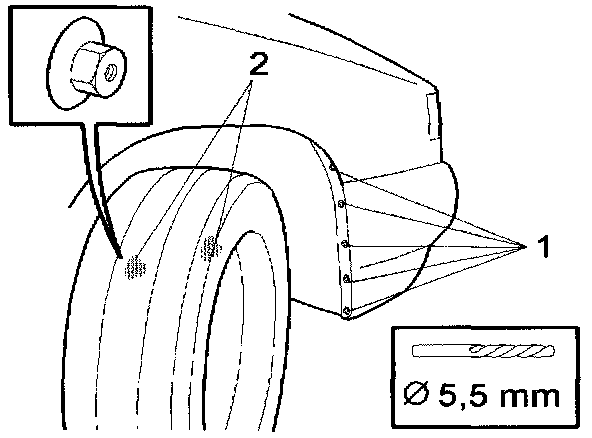

Remove:
3 mm fender liner rivets
fender liner nuts.
siren.


ZZP2. Installing Siren





In reverse order.
