Mass Air Flow (MAF) Sensor




MASS AIR FLOW (MAF) SENSOR

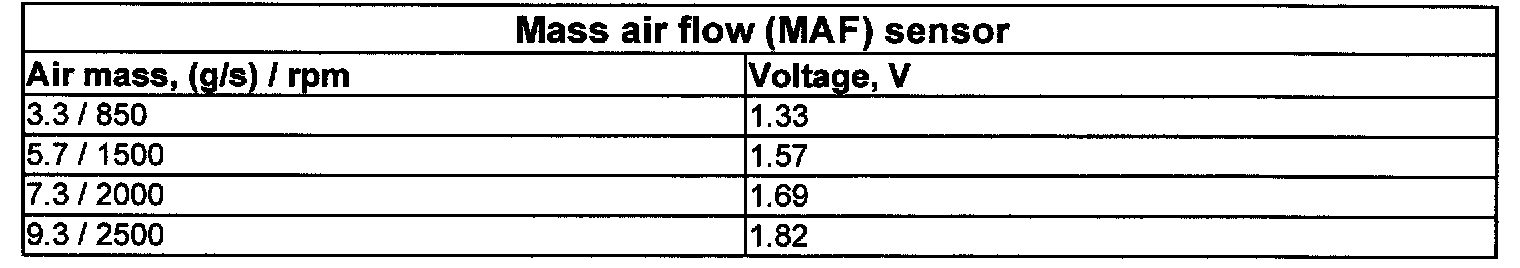

Air mass is given in gis and engine speed (RPM) with an unloaded engine at operating temperature. The values should be regarded as approximate.
