Manifold Absolute Pressure (MAP) Sensor

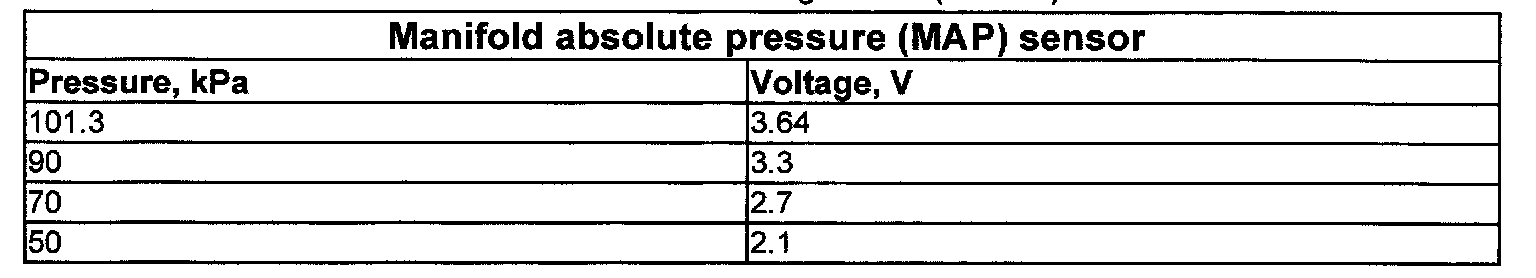

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

The pressure is given in kPa and sinks with increased engine load (vacuum)
