Outside Temperature Sensor Door Mirror, Replacing

OUTSIDE TEMPERATURE SENSOR DOOR MIRROR, REPLACING

Removal

Preparatory work

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Ignition off.
Remove the door mirror. Replacing the Mirror




Removing the outside temperature sensor

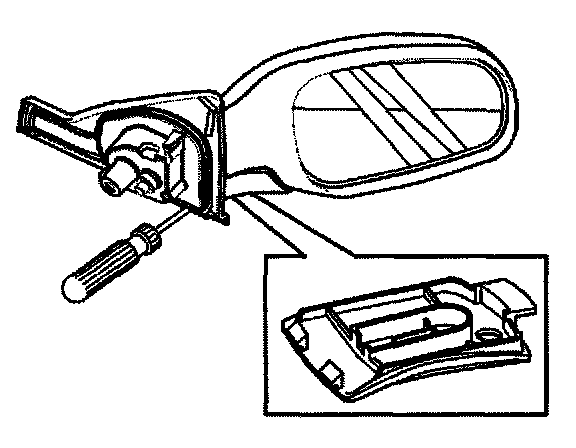

Remove the temperature sensor using a screwdriver as illustrated
Disconnect the terminal pin from connector
Remove the temperature sensor.


Installation

Installing the outside temperature sensor
Route the cable for the temperature sensor to the connector.
Install the terminal pin in the connector.
Press the temperature sensor in the door mirror.

Finishing work
Install the door mirror. Replacing the Mirror
