Camshaft Position Sensor (CMP), Replacing

REPLACING CAMSHAFT POSITION SENSOR (CMP)

Removing position sensor




Remove
- the pipe between the air cleaner (ACL) and the throttle body (TB) put to one side
- the throttle body (TB), to one side




- the sensor.

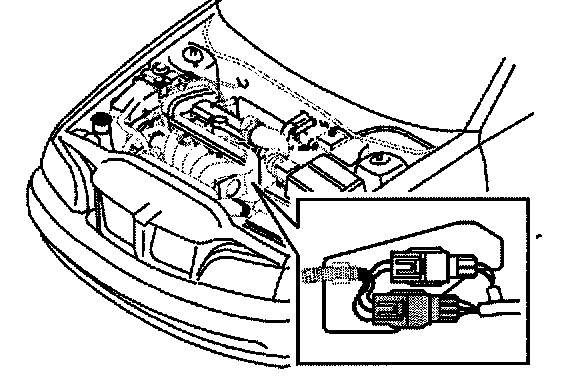

Expose the wiring and disconnect the connector.


Installing position sensor




Connect the connector.
Install
- the sensor. Secure the wiring




- the throttle body (TB) with new gasket. Tighten to 17 Nm (12.54 lb.ft)
- the pipe between air cleaner (ACL) and throttle body.
