Early

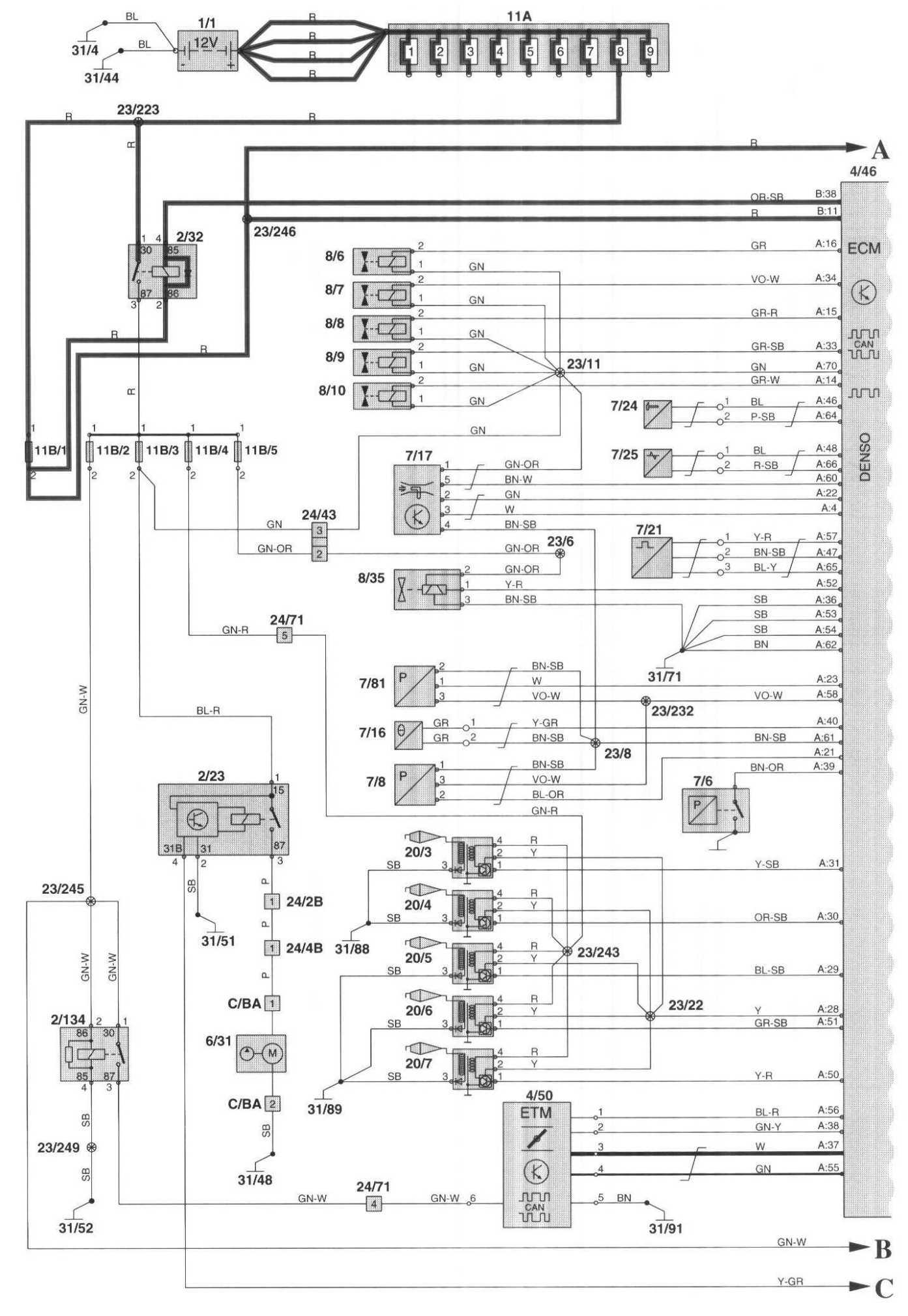

Engine Management System Denso - Wiring Diagram:

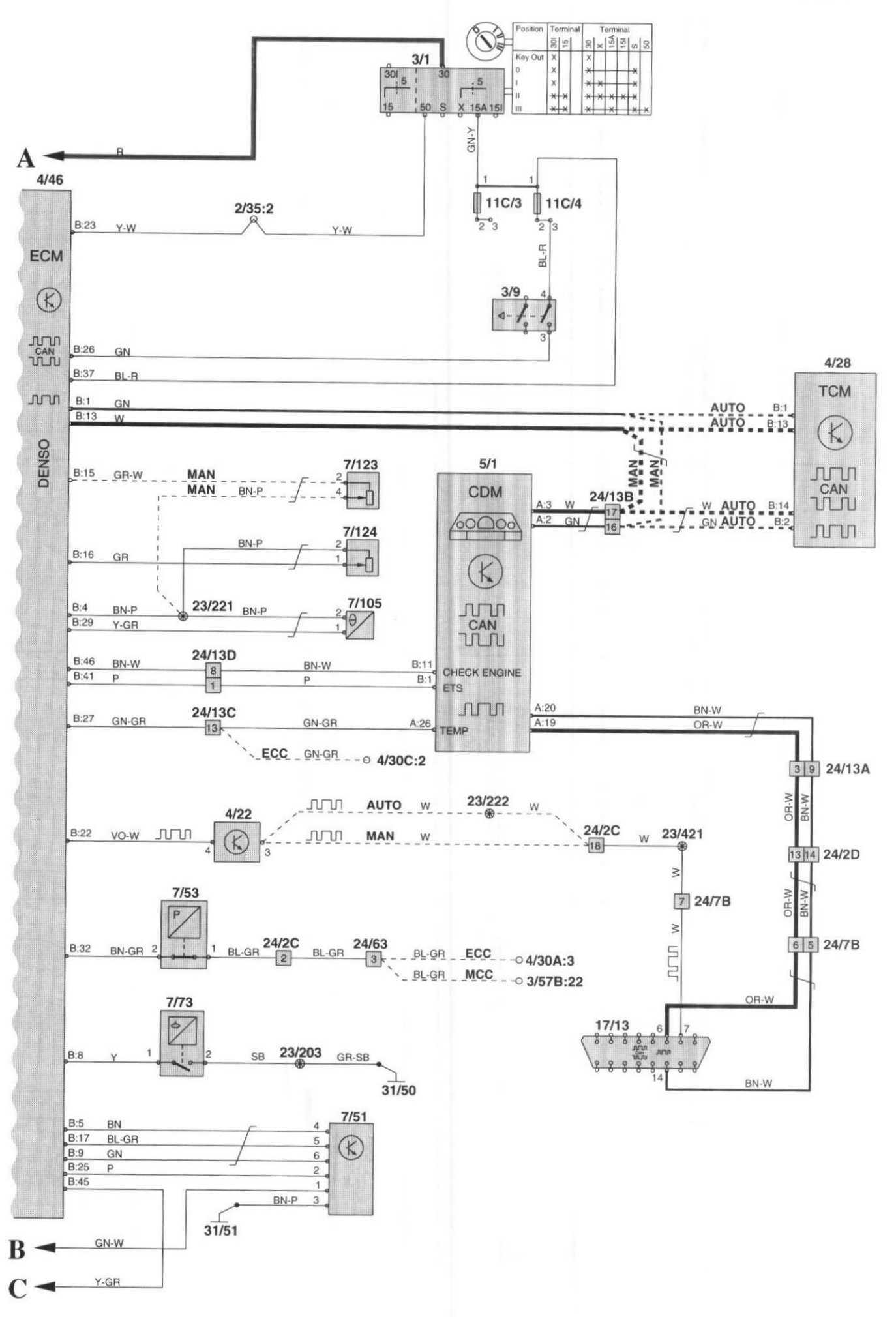

Engine Management System Denso - Wiring Diagram:

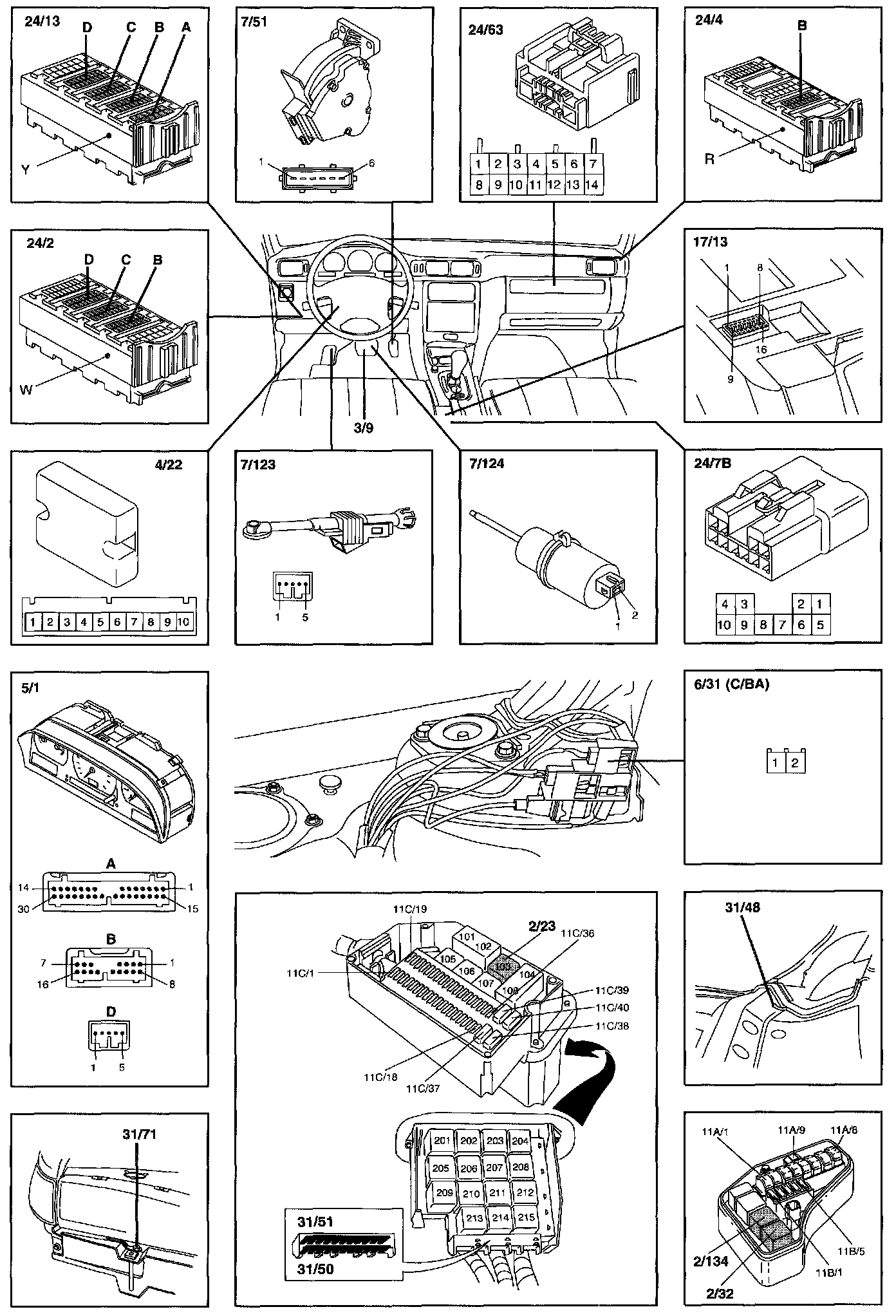

Engine Management System Denso - Component Location:

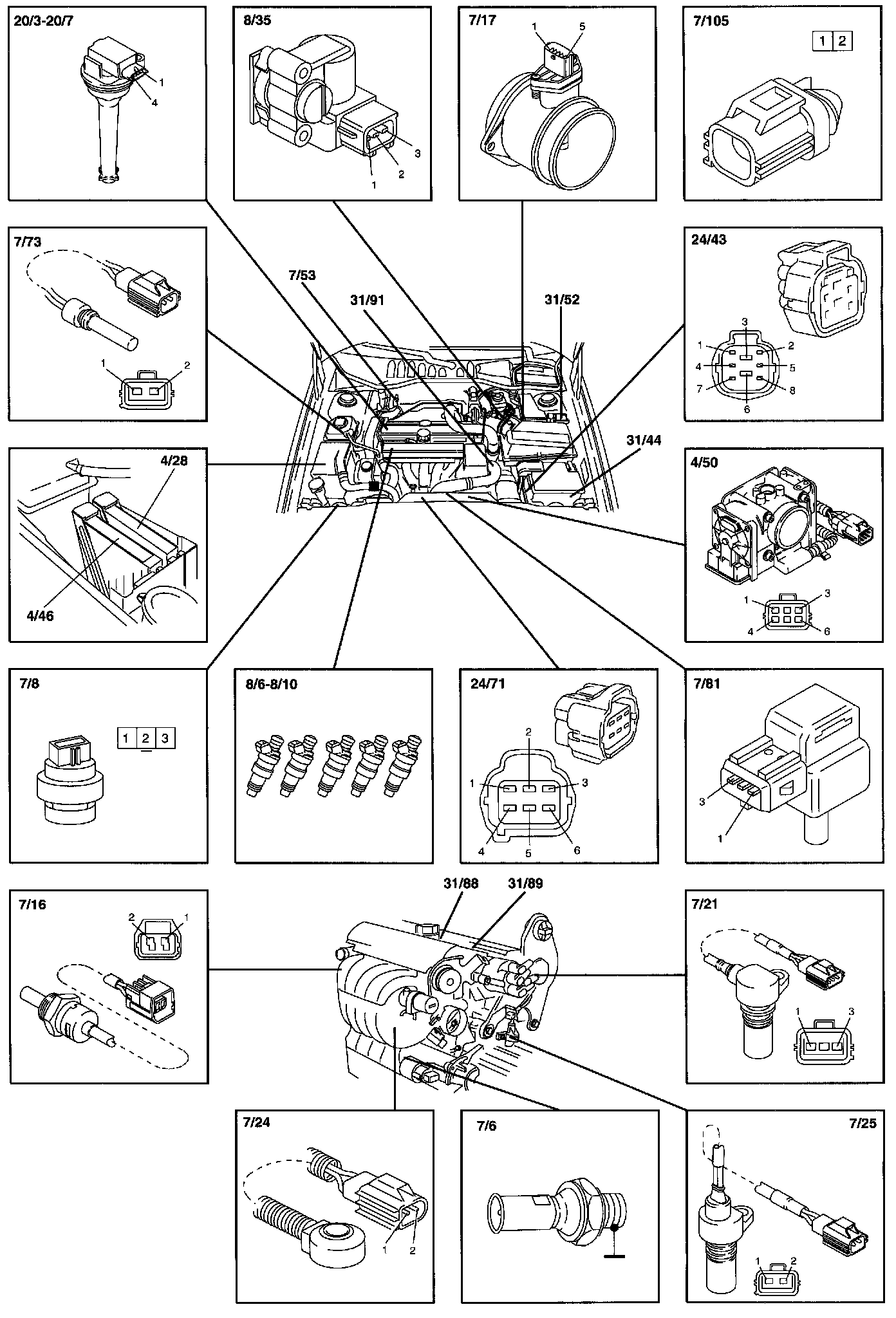

Engine Management System Denso - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
