Faulty Signal

ECM-9520 ACCELERATOR PEDAL (AP) POSITION SENSOR
FAULTY SIGNAL

Reading DTC status ECM-9520:




Note! When Reading the DTC status, other stored Diagnostic Trouble Codes (DTCs) and their status will also be listed.

- Read the Diagnostic Trouble Code (DTC) status. Check the status of the relevant Diagnostic Trouble Code (DTC).

Was the status of the relevant Diagnostic Trouble Code (DTC) permanent?
Yes - Skip to "Checking Components and Wiring"
No - Continue below.


Checking wiring and connectors



Inspect the connector and terminals visually according to [1][2]Checking Wiring and Terminals. Intermittent Faults

Remedy as necessary.

Other information
- To connect the breakout box, Connecting the Breakout Box (ECM)

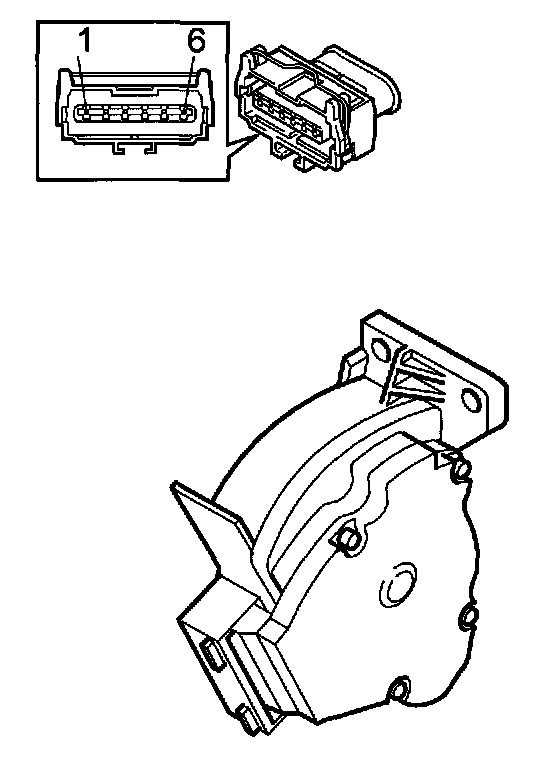

- To access/replace the accelerator pedal (AP) position sensor, Accelerator Pedal Module, Replacing
- For information about signals, Pinout Values and Diagnostic Parameters


Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
--Testing Complete--


Checking Components and Wiring



Inspect the connector and terminals visually according to Checking Wiring and Terminals. Permanent Fault

Remedy as necessary.

Other information:
- To access/replace the accelerator pedal (AP) position sensor, Accelerator Pedal Module, Replacing
- For information about signals, Pinout Values and Diagnostic Parameters


Verification



Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
Read the pulse width modulated signal. Try depressing and releasing the Accelerator Pedal (AP). Check that the values are correct. The value is approximately 7% when the Accelerator Pedal (AP) is unaffected and approximately 85% when the Accelerator Pedal (AP) is fully depressed.
For information about signals, Pinout Values and Diagnostic Parameters

Do the values correspond?
Yes - Tesing Complete.
No - Continue below.


Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed. Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
