Diagnostic Trouble Code (DTC) Information

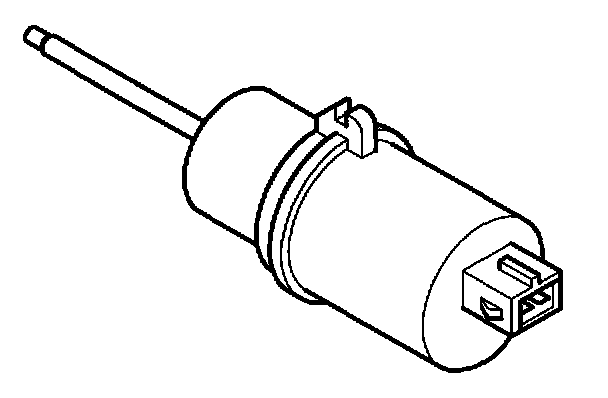

ECM-941F BRAKE PEDAL SENSOR, FAULTY SIGNAL
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
Diagnostic Trouble Code (DTC) ECM-941F is stored in the Engine Control Module (ECM) if the Engine Control Module (ECM) registers a signal outside its permitted range between the brake pedal sensor and the stop (brake) lamp switch.

Condition
- cruise control shut off.

Possible source
- open-circuit in signal cable
- defective stop (brake) light switch.

Condition
- ETS warning lamp lit
- cruise control does not function at all.
