Faulty Signal

ECM-921F CLUTCH PEDAL SENSOR
FAULTY SIGNAL

Reading off diagnostic trouble code (DTC) status ECM-921F:



Note! When reading off the diagnostic trouble code (DTC) status, other stored diagnostic trouble codes (DTCs) and their status will be listed.

- Read off the diagnostic trouble code (DTC) status. Check the status of the relevant diagnostic trouble code (DTC).

Was the status of the relevant diagnostic trouble code (DTC) permanent?
Yes - Skip to "Checking the Function of the Clutch Pedal Sensor"
No - Continue below.


Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
--Testing Complete--

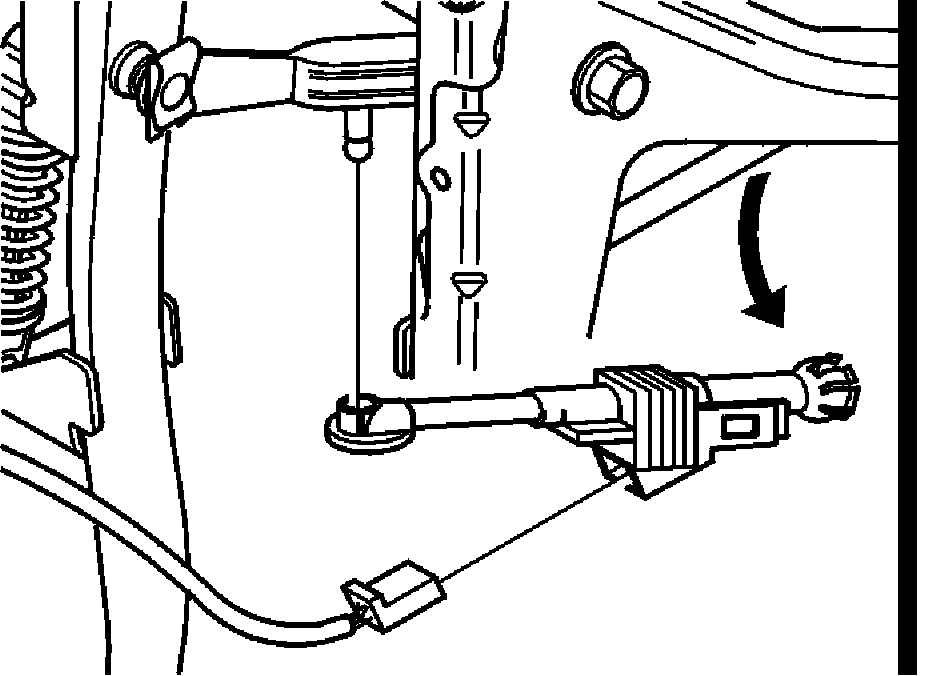

Checking the Function of the Clutch Pedal Sensor



Check the installation and function of the clutch pedal sensor.

Remedy as necessary.


Fault-tracing information
Fault-tracing is not followed by verification for this fault.
