Signal Too High

ECM-9200 CRUISE CONTROL
SIGNAL TOO HIGH

Reading Diagnostic Trouble Code (DTC) status ECM-9200




Note! When Reading the Diagnostic Trouble Code (DTC) status, other stored Diagnostic Trouble Codes (DTCs) and their status will be listed.

- Read the Diagnostic Trouble Code (DTC) status. Check the status of the relevant Diagnostic Trouble Code (DTC).

Was the status of the relevant Diagnostic Trouble Code (DTC) displayed as permanent?
Yes - Skipt to "Checking Component and Wiring - Permanent"
No - Continue below.

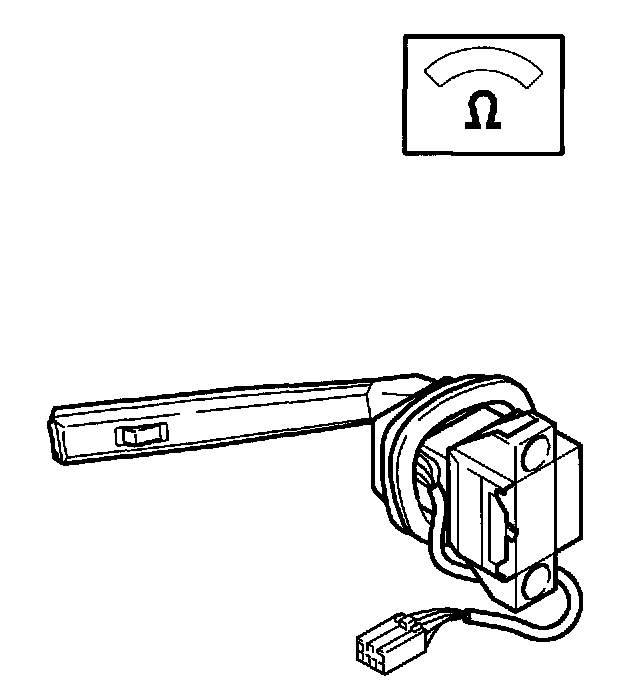

Checking Component and Wiring - Intermittent



The Engine Control Module (ECM) has previously registered a fault in the cruise control lever, but detects that the fault no longer exists.

Other information:
- To access/replace the cruise control lever, Cruise Control Lever/Turn Signal Indicator Switch, Replacing
- For information about signals, Pinout Values and Diagnostic Parameters


Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
--Testing Complete--

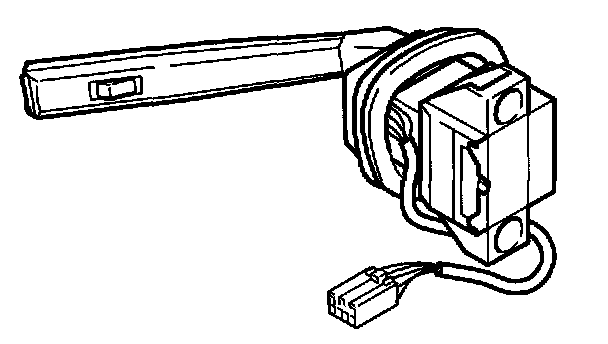

Checking Component and Wiring - Permanent



This Diagnostic Trouble Code (DTC) indicates that either Cruise On and Resume or SET+ and SET- are active at the same time.
Try a new cruise control stalk according to Cruise Control Lever/Turn Signal Indicator Switch, Replacing

Other information:
- For information about signals, Pinout Values and Diagnostic Parameters


Fault-tracing information
Fault-tracing is not followed by verification for this fault.
