Diagnostic Trouble Code (DTC) Information

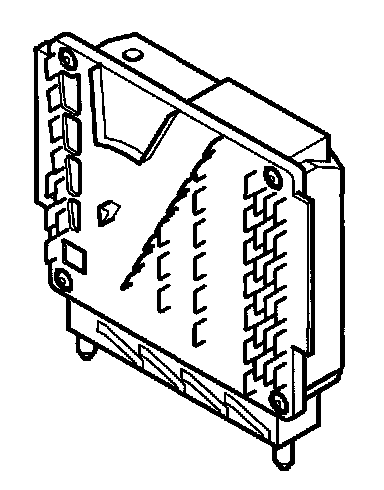

ECM-913F ENGINE CONTROL MODULE (ECM), INTERNAL FAULT
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
Diagnostic trouble code (DTC) ECM-913F is stored in the engine control module (ECM) if the electronic throttle module registers a fault in the engine control module (ECM).

Substitute value
- the accelerator pedal (AP) is ignored when braking
- the cruise control cannot be activated
- the engine speed (RPM) is limited using fuel shut off. The maximum permitted engine speed depends on the accelerator pedal (AP) position
- the throttle unit follows the pulse width modulation (PWM) accelerator pedal signal directly, the control signal via CAN is ignored.

Possible source
- defective engine control module (ECM)
- the power supply to the engine control module (ECM).

Fault symptom[s]
- the accelerator pedal (AP) is ignored when braking
- the cruise control cannot be activated
- uneven idle
- jerks during engine braking
- the ETS warning lamp lights (C70 and S/V70 -2000 only).
