Charged Too Long

ECM-8010 BATTERY VOLTAGE
CHARGED TOO LONG

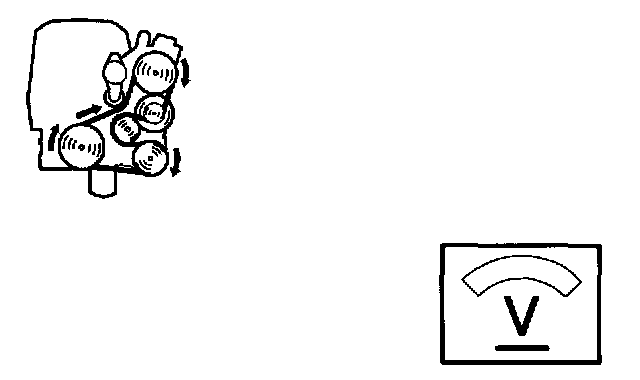

Checking charge voltage



- Start the engine.
- Connect a voltmeter between battery terminals.

Battery voltage should be over 16 V.

Is the battery voltage OK?
Yes - Continue below.
No - Skip to "Checking Charging System"


Intermittent fault
- Check control module connector and battery and generator (GEN) terminals for loose connections according to [1][2]Checking Wiring and Terminals. Intermittent Faults and contact resistance and oxidation according to [1][2]Checking Wiring and Terminals. Intermittent Faults

- Check cable terminal on fuse 11B/1 for contact resistance and oxidation according to [1][2]Checking Wiring and Terminals. Intermittent Faults

--Testing Complete--


Checking Charging System
Check charging system for low charge voltage.
