Diagnostic Trouble Code (DTC) Information

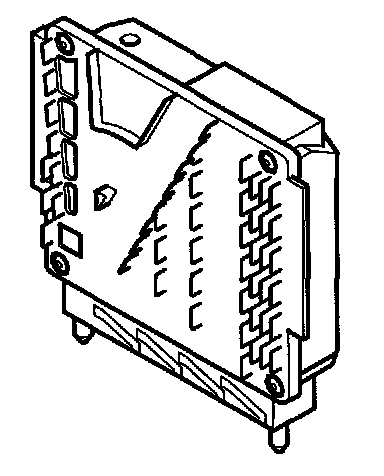

ECM-716D ENGINE CONTROL MODULE (ECM), TEMPERATURE TOO HIGH
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
The engine control module (ECM) has detected an internal temperature of 98°C and diagnostic trouble code (DTC) ECM-716D has been stored.

Condition
The engine coolant fan starts at low speed.

Possible source
- high output temperature
- blocked air intake to the control module box
- the car has been in a varnishing furnace.

Condition
None.
