Diagnostic Trouble Code (DTC) Information

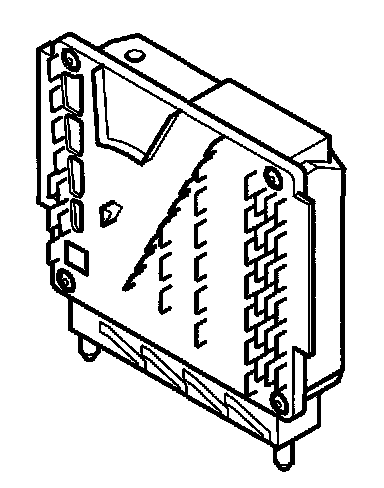

ECM-715D ENGINE CONTROL MODULE (ECM), TEMPERATURE TOO HIGH
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
The engine Control module (ECM) has a detected an internal temperature of 90°C.

Condition
The engine coolant fan starts at low speed.

Possible source
- high output temperature
- blocked air intake to the control module box
- the car has been in a varnishing furnace.

Condition
None.
