Signal Too Low - Intermittent Fault

ECM-6300 ETS WARNING LAMP
SIGNAL TOO LOW - INTEMITTENT FAULT

Checking cables

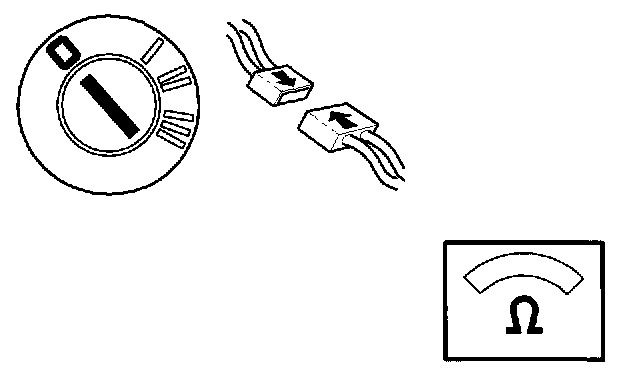

- Ignition off.

Check cable between #B41 and combined instrument panel #B16 for a short-circuit to ground according to [1][2]Checking Wiring and Terminals. Intermittent Faults and an open-circuit according to [1][2]Checking Wiring and Terminals. Intermittent Faults

Remedy as necessary.

Other information:
- To connect the breakout box, Connecting the Breakout Box (ECM)
- To connect combined instrument panel breakout box, Connecting the Breakout Box (Combined Instrument Panel)


Verification



Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall connectors, components etc.
- Ignition on.
- Check to see if the diagnostic trouble code (DTC) recurs.

Do the movement correspond?
Yes - Testing Complete.
No - Continue below.


Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
