Diagnostic Trouble Code (DTC) Information

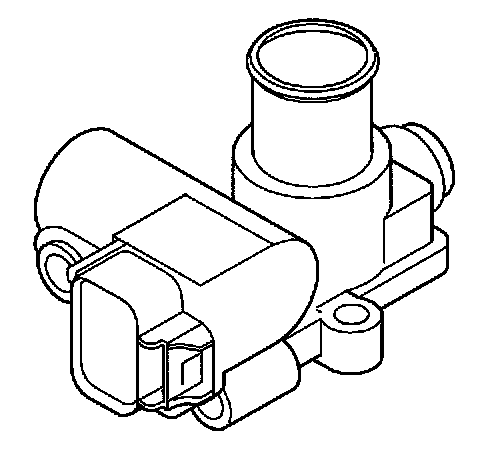

ECM-6200 AACV
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
The control signal should be between 26.5 and 95.0%. Diagnostic trouble code (DTC) ECM-6200 is stored if the control module registers a short-circuit to ground/voltage in the signal cable for the assisted air control valve or if there is an open-circuit in the circuit.

Condition
None.

Possible source

Faulty signal:
- short-circuit to supply voltage in the signal cable
- short-circuit to ground in the signal cable
- open-circuit in the signal cable

Condition
- high idling speed
- low idling speed
- oscillating idling.
