Signal Too High

ECM-6110 ENGINE COOLING FAN (FC) RELAY, LOW SPEED
SIGNAL TOO HIGH

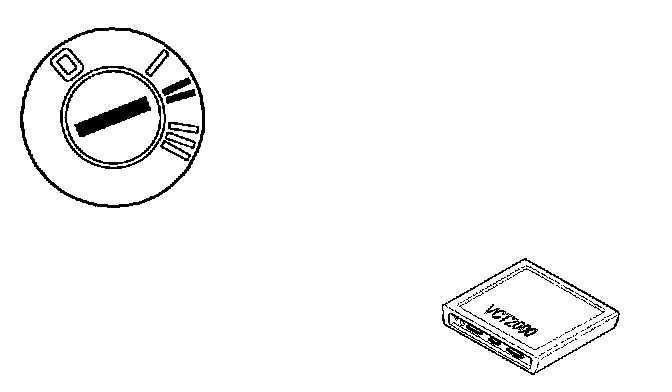

Checking for intermittent faults



- Ignition on.
- Activate the engine cooling fan (FC) at low-speed.

Check that the engine cooling fan (FC) starts and runs at low-speed.

Does the engine cooling fan (FC) start and run at low-speed?
Yes - Continue below.
No - Skip to "Checking Wiring and Components"

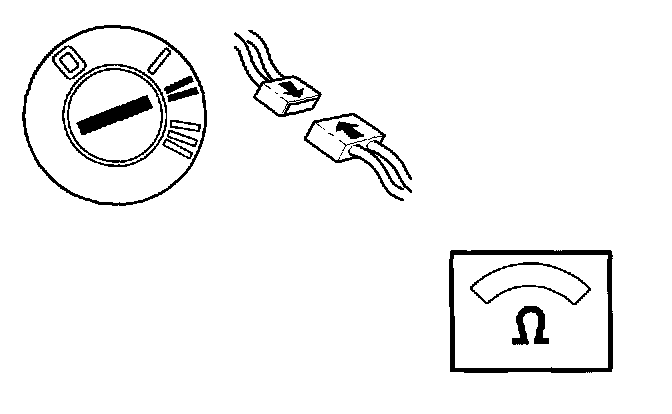

Checking the connectors (resistance)



- Ignition off.

Check the connector for the engine cooling fan (FC) relay for contact resistance and oxidation according to [1][2]Checking Wiring and Terminals. Permanent Fault

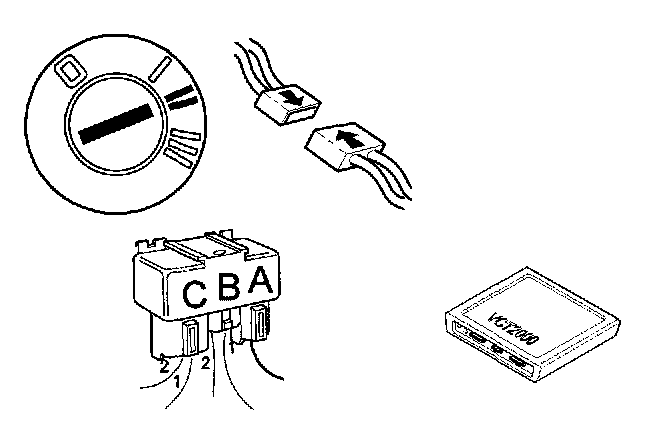

Checking the connectors



- Reinstall components, reconnect connectors etc.
- Ignition on.
- Activate the engine cooling fan (FC) at low-speed.

Check whether the engine cooling fan (FC) starts and runs at low-speed.

If the engine cooling fan (FC) now starts, the cause of the fault was loose connections in the connector.

Other information
- To access/replace the engine cooling fan (FC) relay, Replacing Relay In the Main Fuse Box
- For information about signals, Pinout Values and Diagnostic Parameters

Does the engine cooling fan (FC) start and run at low-speed?
Yes - Testing Complete.
No - Continue below.

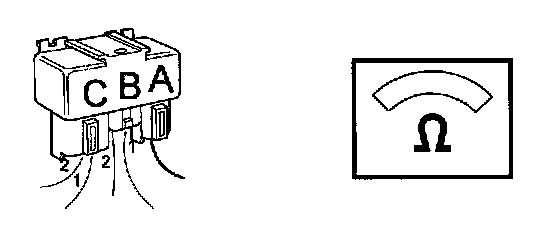

Checking Wiring and Components



Check the signal cable between control module terminal A6 and engine cooling fan (FC) relay terminal B1 for a short-circuit to supply voltage according to [1][2]Checking Wiring and Terminals. Permanent Fault

If no fault is found in the cable, try a new relay for the engine cooling fan (FC).

Other information
- To connect the breakout box, Connecting the Breakout Box (ECM)
- To access/replace the control module, Engine Control Module (ECM), Replacing
- To access/replace the engine cooling fan (FC) relay, Replacing Relay In the Main Fuse Box
- For information about signals, Pinout Values and Diagnostic Parameters

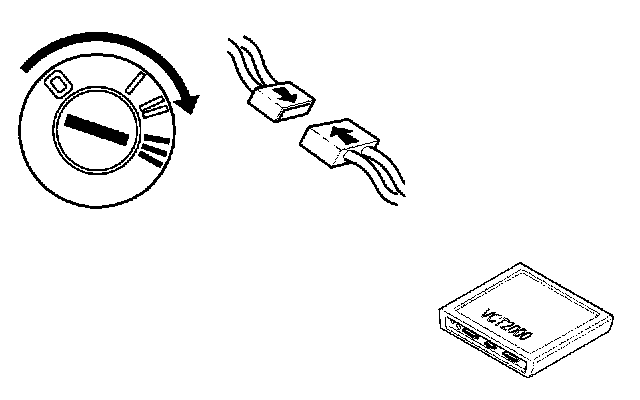

Verification



Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reconnect connectors, reinstall components
- Ignition on.
- Activate engine cooling fan (FC), low-speed.

Check whether engine cooling fan (FC) starts and runs at low-speed.

Does the engine cooling fan (FC) start and run at low-speed?
Yes - Testing Complete.
No - Continue below.


Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
