Diagnostic Trouble Code (DTC) Information

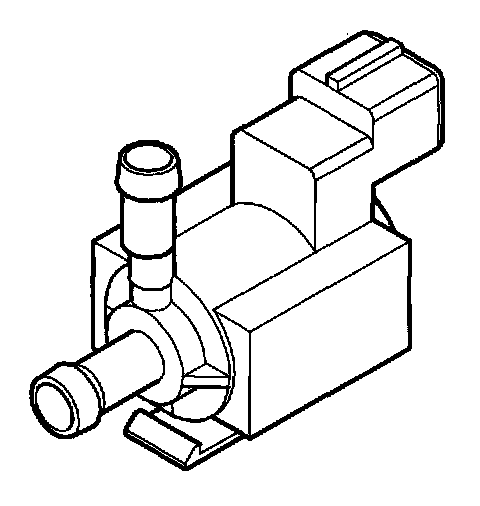

ECM-4047 CANISTER PURGE (CP) VALVE/CANISTER SHUT OFF VALVE
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
During leak diagnostics, the relevant components are checked. Diagnostic Trouble Code (DTC) ECM-4047 is stored if the engine control module (ECM) registers a fault in the canister purge (CP) valve or EVAP canister shut-off valve.

Condition
- fuel trim disabled
- Canister purge (CP) valve disabled.

Possible source

EVAP canister shut-off valve leakage:
- defective hoses
- defective EVAP canister shut-off valve.

Canister purge (CP) valve leakage:
- defective hoses
- defective canister purge (CP) valve.

EVAP canister shut-off valve clogged:
- clogged hoses
- defective EVAP canister shut-off valve.

Condition
None.
