Diagnostic Trouble Code (DTC) Information

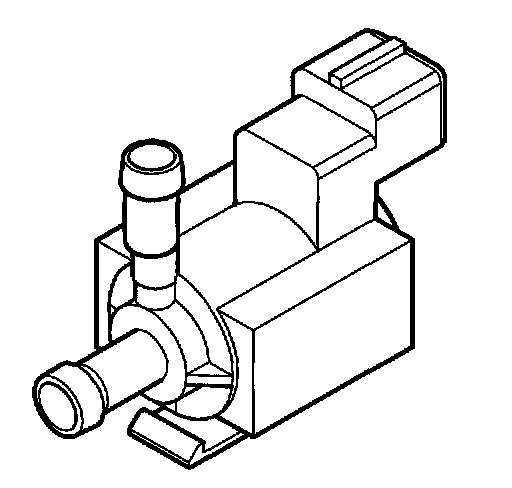

ECM-4010 EVAP CANISTER SHUT-OFF VALVE
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Diagnostic trouble code (DTC) ECM-4010 is stored if the control module registers that the canister shut-off valve signal cable has a short-circuit to ground/voltage or if there is an open-circuit in the circuit.

Condition
Canister purge (CP) valve is not activated.

Possible source
- short-circuit to supply voltage in the signal cable
- short-circuit to ground in the signal cable
- open-circuit in signal cable
- defective EVAP canister shut-off valve.

Condition
None.
