Diagnostic Trouble Code (DTC) Information

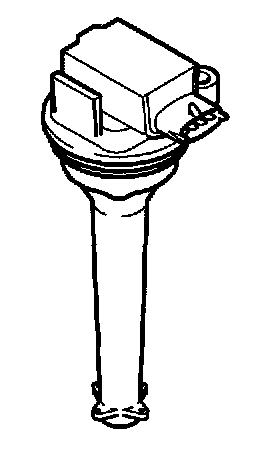

ECM-33X0 IGNITION COIL X
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
Diagnostic trouble code (DTC) ECM-33X0 is stored in the engine control module (ECM) if the engine control module (ECM) registers a fault in the signal cable to the ignition coil primary winding.

Condition
Fuel trim disabled.

Possible source

Faulty signal:
- short-circuit to supply voltage in the signal cable
- short-circuit to ground in the signal cable
- open-circuit in signal cable
- loose connections in connector
- defective ignition coil

Condition
- engine misfires.
