Diagnostic Trouble Code (DTC) Information

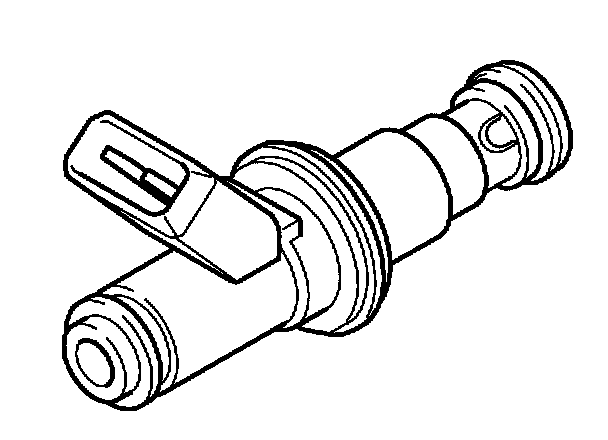

ECM-23X0 INJECTOR X
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Diagnostic trouble code (DTC) ECM-23X0 is stored if control module registers that an injector circuit is short-circuited to ground/voltage or if there is an open-circuit in the circuit.

Condition
Fuel trim disabled.

Possible source

Faulty signal
- short-circuit to supply voltage in the signal cable
- short-circuit to ground in the signal cable
- open-circuit in signal cable
- defective injector.

Condition
- engine not firing on all cylinders
- engine does not start.
