Diagnostic Trouble Code (DTC) Information

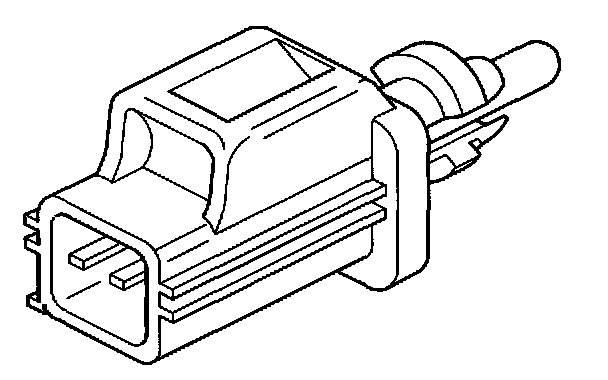

ECM-110A OUTSIDE TEMPERATURE SENSOR
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
- the engine speed (RPM) is higher than 1,500 rpm
- load is above 10 g/second
- the Engine Coolant Temperature (ECT) is below 50°C.

Diagnostic Trouble Code (DTC) ECM-110A is stored if the control module registers that the outside temperature sensor displays more than 60°C for approximately 15 seconds.

Condition
20°C

Possible source

Faulty signal:
- defective outside temperature sensor
- contact resistance in the connectors.

Condition
None.
