Engine - Installing Clamp on Vacuum Hose

850/S70/V70
1992-

Section
5

Group
52

No
0001

Year
98

Month
09

Reference: TP 5002202, Section 5 (50, 52, 55, 59) Brakes (incl. ABS and TRACS); 850 1996-

Installing clamp on vacuum hose

Background:

This service bulletin describes the installation of a hose clamp under the air cleaner box

Materials:

Hose See parts catalog 3524376-5
Clamp 1 978390-3

Installing clamp on vacuum hose (brake booster)

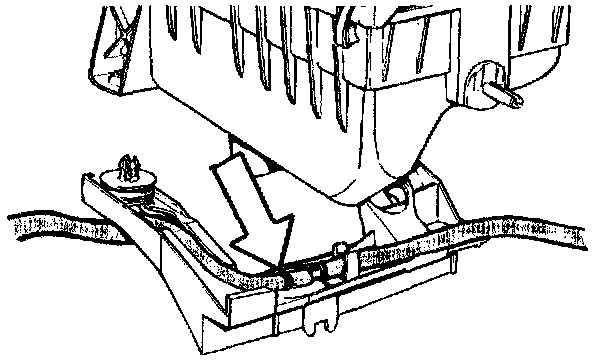

Installing clamp on vacuum hose between brake booster and intake manifold

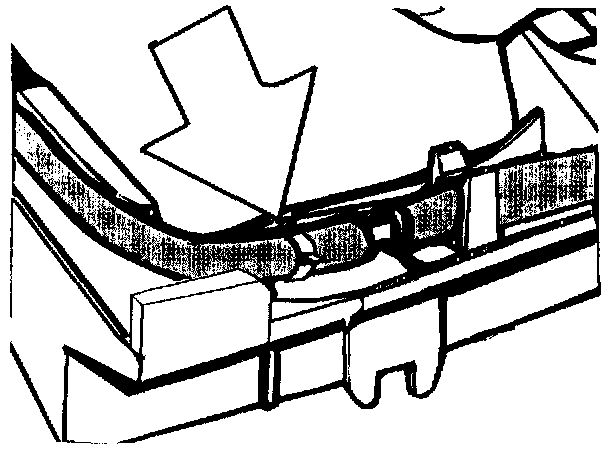

Installing clamp 1








Install the clamp as shown in illustration
