Replacing Control Module Connector

Removing:

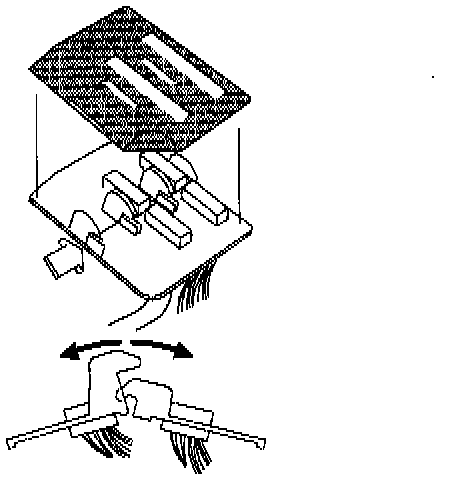

GD1 Removing the Rubber Mat:





NOTE: Disassemble control module box according to GC1 - GC5. Replacing Control Module Box

- Remove silicon rubber mat from holder.
- Take apart the holder and told it to release the catch.

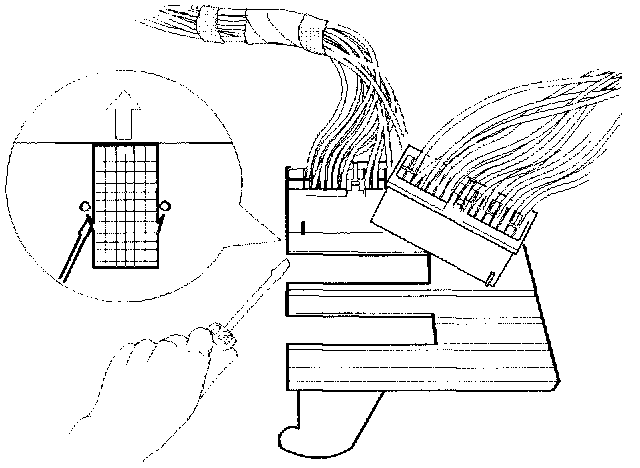

GD2 Disconnecting Connector:




- Turn the holders and press together the control module connector pawls.
- Pull the connector out of the holder.

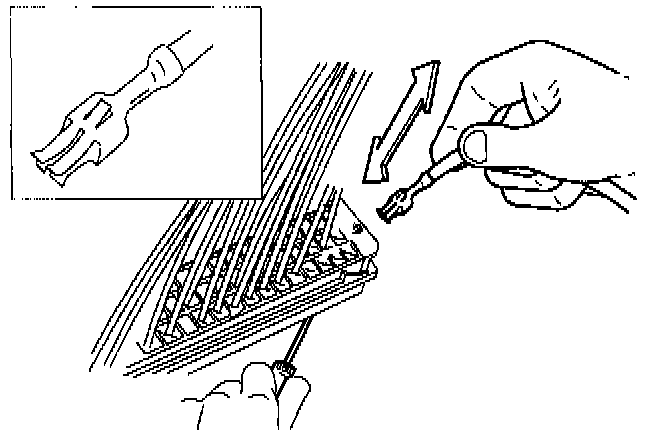

GD3 Removing Terminal Pins:




- Mark the position of the terminal pins in the connector.
- Remove the terminal pins, use an instrument screw- driver to release the catches.

CAUTION: Take care not to deform the terminal pins when removing them.

Installing:

GD4 Installing Terminal Pins:
- Replace the connector.
- Install terminal pins in connector as marked.

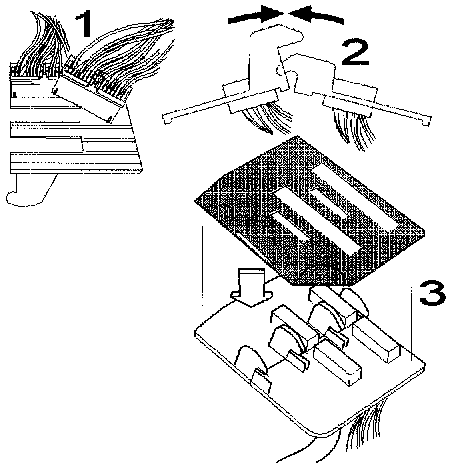

GD5 Installing Connector and Rubber Mat:




1 Install connector in holder.
2 Assemble holder.
3 Install silicon rubber mat on holder.

NOTE: Assemble control module box according to GC6 - GC10. Replacing Control Module Box
