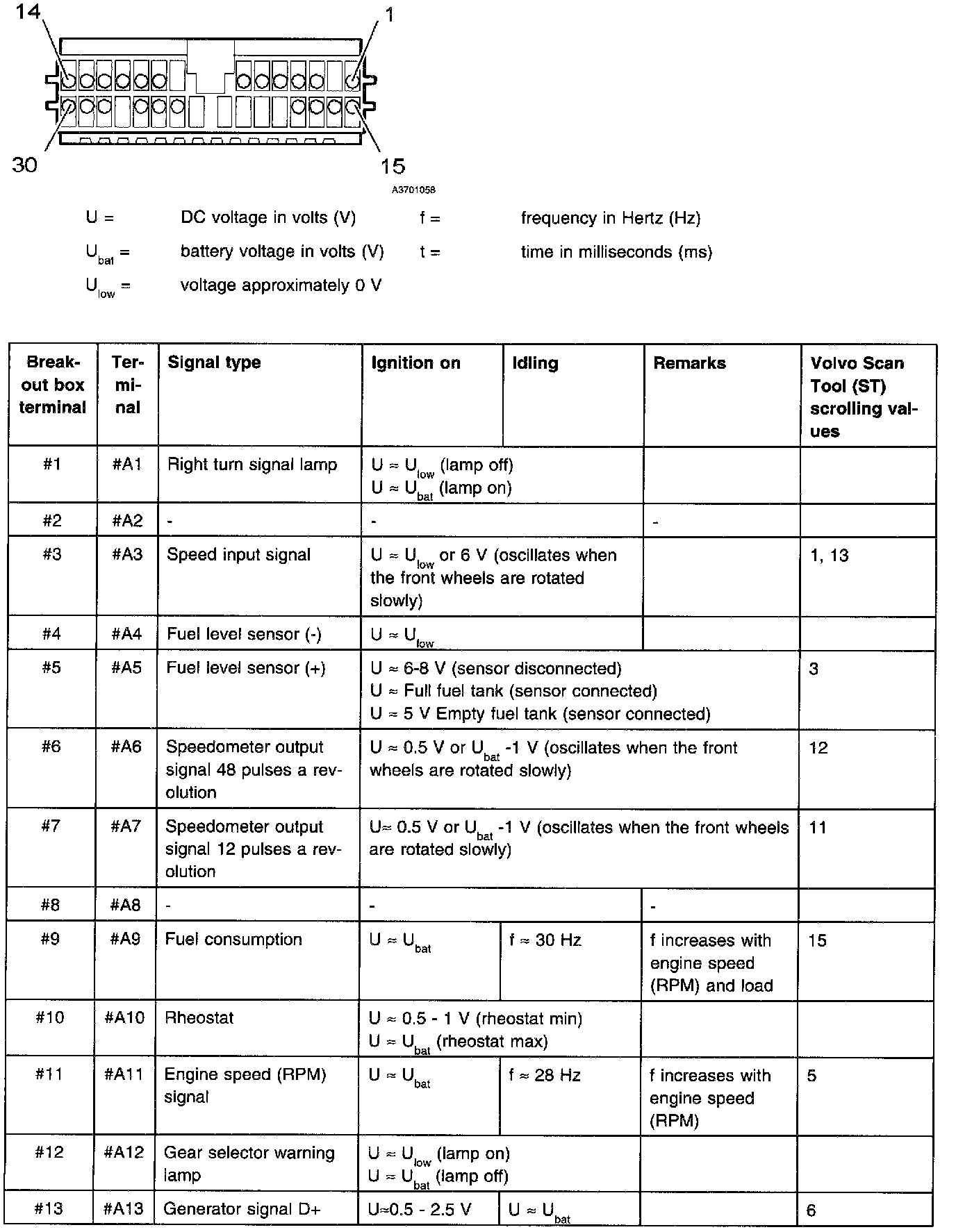

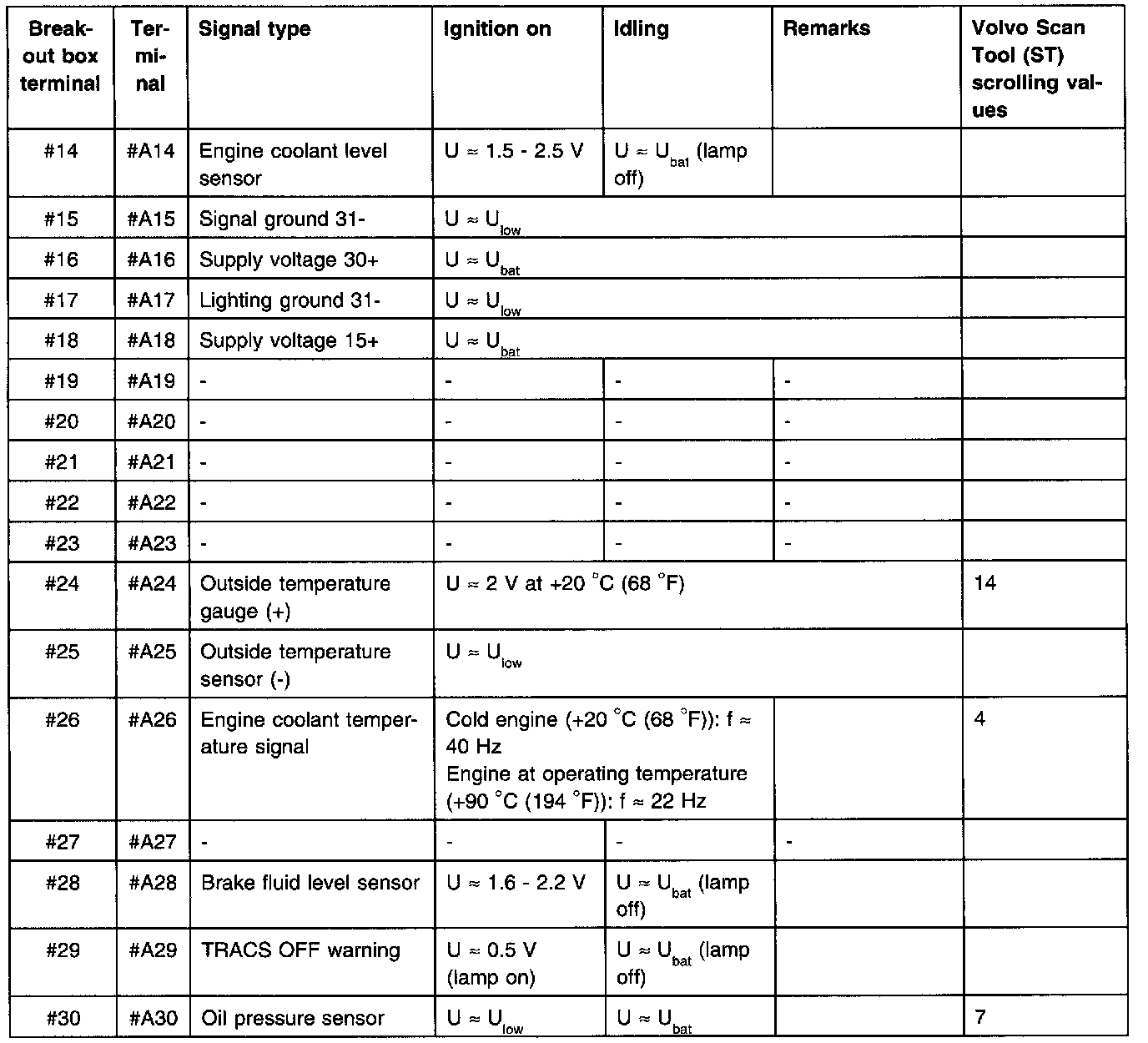

Connector A, #A1 - #A30

The following values are measured between the relevant terminal in column 1 and terminal # A15 (signal ground) unless otherwise stated.

NOTE: Check ground terminals before taking readings with the breakout box. Connecting the Breakout Box
