Removal and Replacement

Replacing evaporator

Removing
- Remove climate unit, complete according to Climate Control Unit Complete, Removal and Installation. Service and Repair

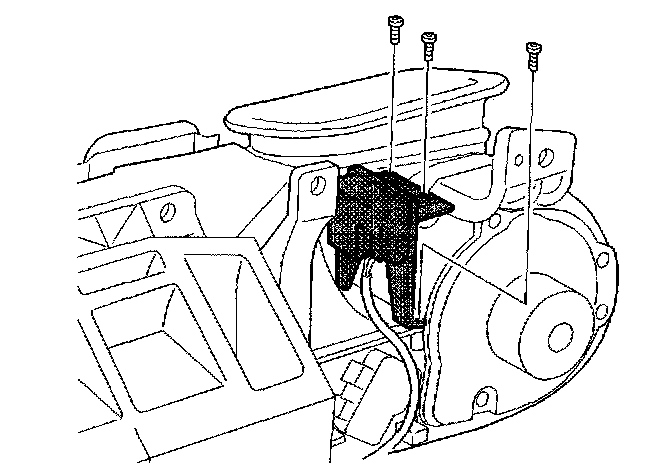

- Remove damper motor recirculation and bracket.

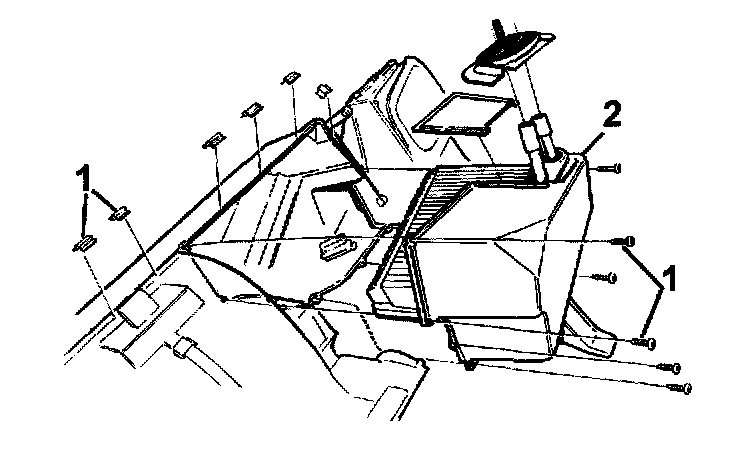

- Remove central electrical unit (1) screws and clips.
- Remove evaporator cover screws and clips.
- Remove evaporator cover (2).
- Remove evaporator.

Installing
- Install evaporator.
- Install the evaporator cover (2).
- Install evaporator cover screws and clips
- Install central electrical unit (1) screws and clips.
- Install recirculation damper motor and bracket.
- Install climate control unit assembly according to Climate Control Unit Complete, Removal and Installation Service and Repair
