Home >> Volvo >> 1999 >> S70 AWD L5-2.4L Turbo VIN 56 B5254T >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Hydraulic System, Brakes >> System Diagram

System Diagram



Part 1 Of 2:

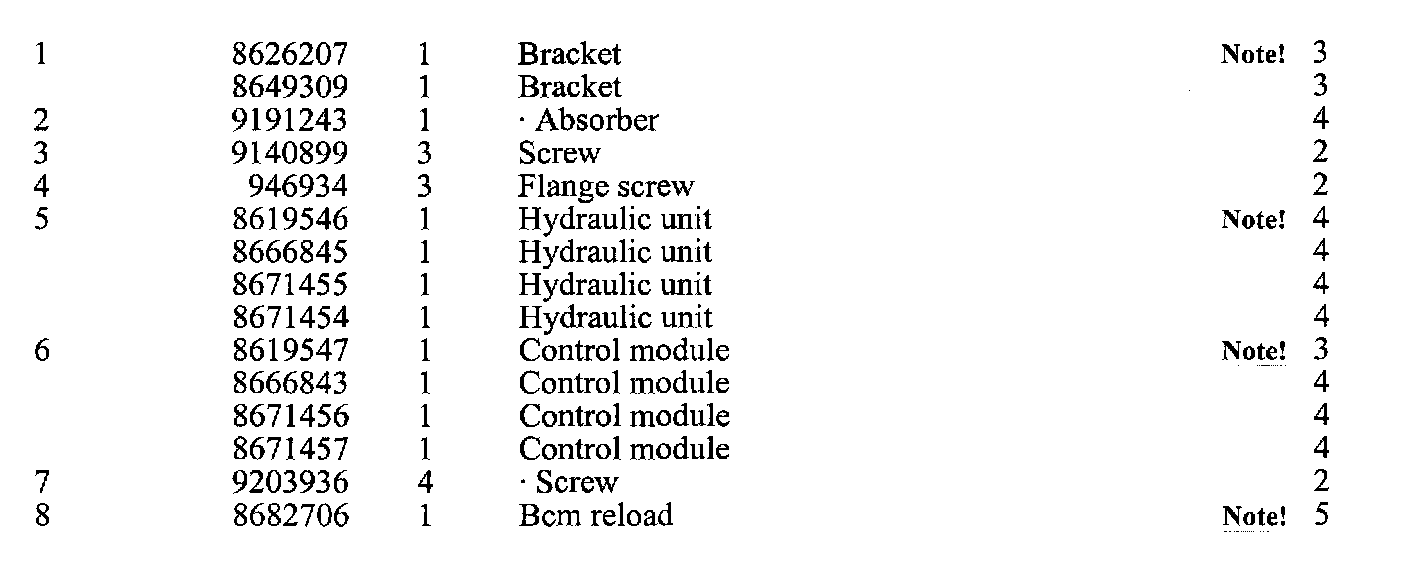

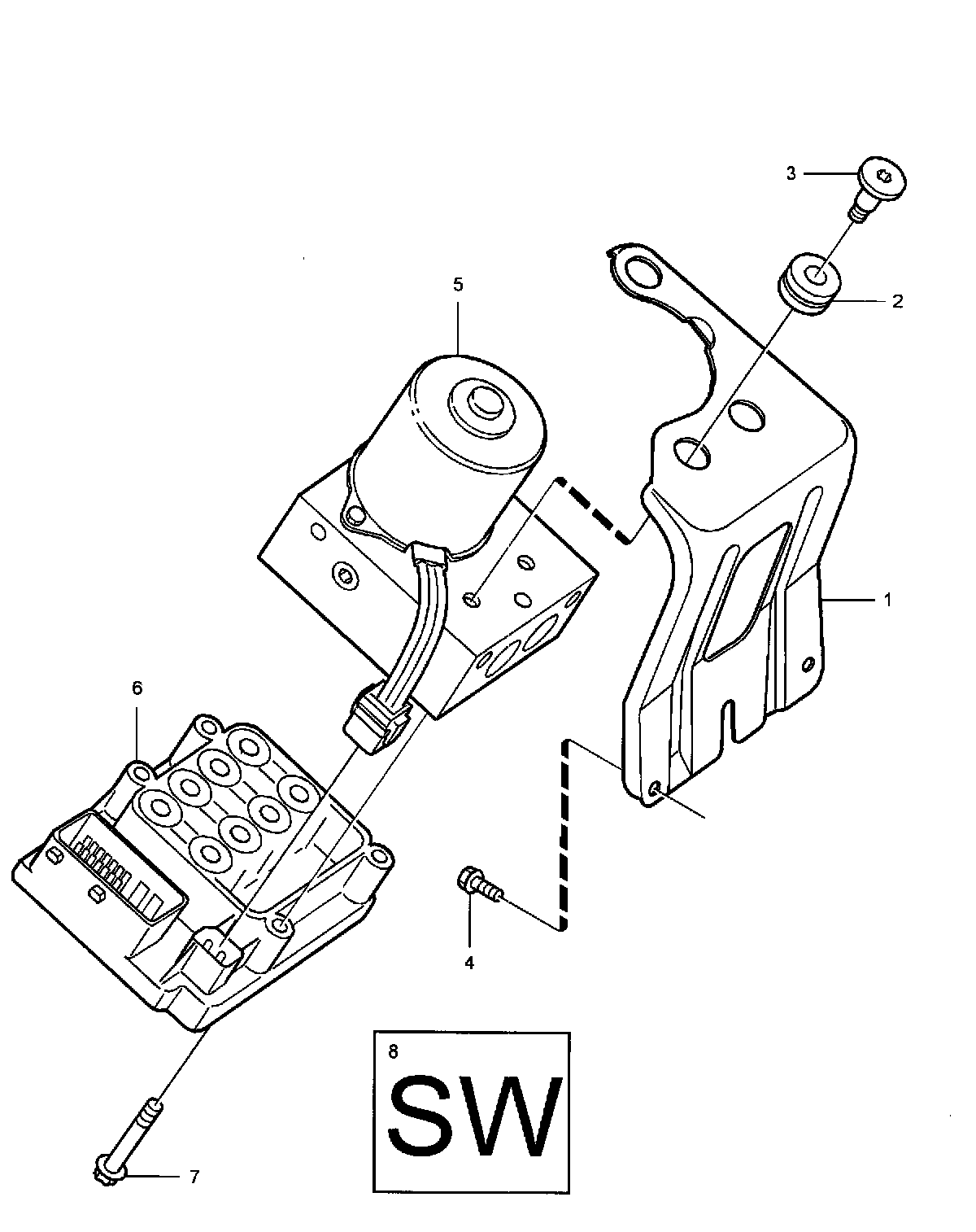

ABS-control unit Hydraulic modulator - AWD, V70, V70XC, XC70
